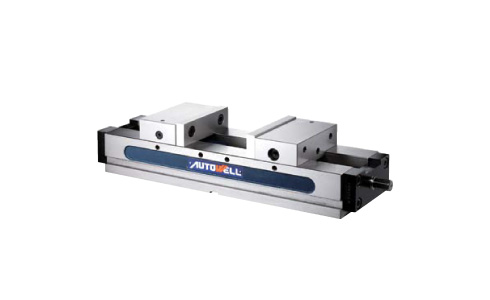

Lockwell Self Centering Machine Vise
Autowell HLD two jaws move in equal proportionally toward the center. Integrated with Lockwell anti-lift mechanism to ensure workpieces do not deflect during machining.
Lockwell : Anti workpiece lifting mechanic
Tolerance of Center of Workpiece: +-0.01mm
Body Material : FCD-60
Body Hardness : HS65
Jaw Material : S50C
Jaw Hardness : HRC54
more
- Model 02HLD
- Manufacturer Code HLD
View Online
Download
Swipe
| Order Code | A | B | C | D | E | F | G | H | J | K | L | M | N | O | T | U | Weight |
| 02HLD-60G | 520 | 154 | 152 | 610 | 124.05 | 64 | 260 | 82.55 | 18 | 18 | 86.5 | 44.5 | 19 | 58~314 | 23.8 | 98.4 | 52kg |
