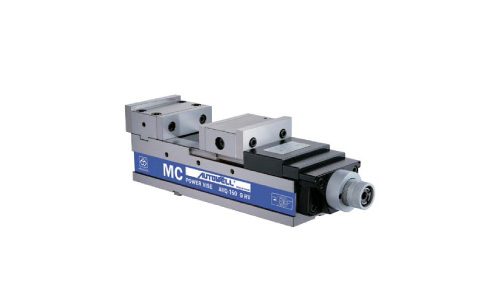

MC Mechanical Power Vise
Autowell AVQ high clamping force vise with MC Mechanical Power system. Suitable for CNC machine work clamping with high clamping force, and precision machining from Lockwell anti-lifting mechanism.
This vise is Match Vise and can be use in row for vise of the same model due to precision vise base height.
Body Material : FCD-60
Body Hardness : HS65
Jaw Material : S50C
Jaw Hardness : HRC54
MC Power : High clamping force vise
Adjustable : Allow adjusting clamping force
Lockwell : Anti workpiece lifting mechanic
more
- Model 02AVQ
- Manufacturer Code AVQ
View Online
Download
Swipe

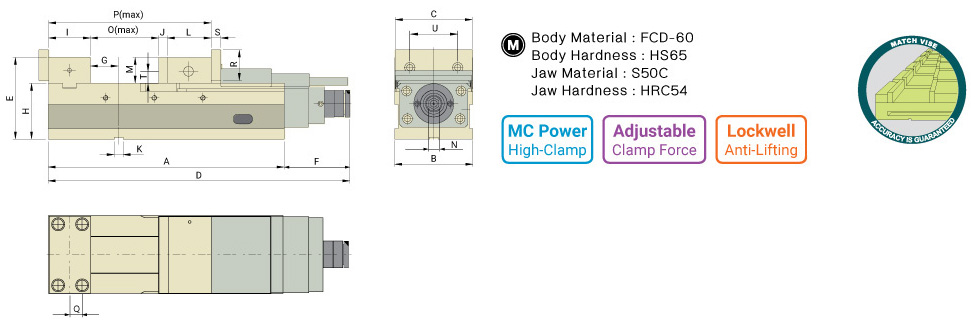

| Order Code | A | B | C | D | E | F | G | H | I | J | K | L | M |
| 02AVQ-100G | 324 | 104 | 102 | 428 | 130 | 104 | 41 | 85 | 73 | 15 | 18 | 86.5 | 45 |
| 02AVQ-125G | 390 | 124.7 | 125 | 495 | 153 | 105 | 66 | 100 | 78 | 15 | 18 | 87.5 | 53 |
| 02AVQ-160G | 485 | 159.2 | 159.5 | 605 | 168 | 120 | 58 | 115 | 86 | 18 | 18 | 80 | 53 |
| 02AVQ-200G | 535 | 199.5 | 200 | 655 | 178 | 128 | 75 | 120 | 101 | 18 | 18 | 95 | 58 |
Swipe
| Order Code | N | O | P | Q | R | S | T | U | Clamping Force | Weight |
| 02AVQ-100G | 14 | 140 | 314.5 | 20 | 55 | 17 | 22.5 | 58 | 25KN | 30kg |
| 02AVQ-125G | 14 | 201 | 381.5 | 22.5 | 63 | 20 | 26.5 | 60 | 35KN | 46kg |
| 02AVQ-160G | 14 | 295 | 479 | 25 | 63 | 20 | 26.5 | 98.4 | 45KN | 71kg |
| 02AVQ-200G | 14 | 320 | 534 | 31 | 73 | 20 | 29 | 120 | 50KN | 100kg |
