Stroke End Blocks

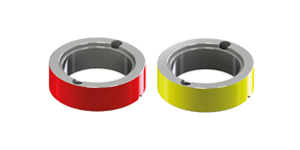

Stroke End Blocks for die maintenance, can be ordered individually, in a pair, or in a set with chain.
Full Diameter : 25SEB
Half Diameter : 25SSB
More details can be found in Die Components catalog
more
- Model 25SEB/25SSB
- Manufacturer Code CEB/CSB
View Online
Download
Swipe
| Model | PD | H1 5mm increment |
Color | D | D1 | D2 | S | h | ℓ | Bolts |
| 25SEB | 25 | 10 – 50 | R (สีแดง/Red) Y (สีเหลือง/Yellow) |
46 | 31.5 | 36 | 37 | 2 | 10 | M4 x 0.7 |
| 32 | 10 – 60 | 56 | 41 | 45 | 45 | |||||
| 38 | 15 – 70 | 72 | 49 | 56 | 60 | 3 | M5 x 0.8 | |||
| 50 | 20 – 80 | 86 | 62 | 68 | 72 | M6 x 1.0 | ||||
| 60 | 20 – 80 | 112 | 76 | 84 | 92 | 12 | M8 x 1.25 | |||
| 80 | 20 – 80 | 140 | 100 | 108 | 116 |
Swipe
| Model | PD | H2 5mm increment |
Color | D | r1 | r2 | r3 | h | A |
| 25SSB | 25 | 10 – 40 | R (สีแดง/Red) Y (สีเหลือง/Yellow) |
46 | 15.75 | 18 | 23 | 2 | 22 |
| 32 | 10 – 40 | 56 | 20.5 | 22.5 | 28 | 27 | |||
| 38 | 10 – 50 | 72 | 24.5 | 28 | 36 | 3 | 35 | ||
| 50 | 10 – 50 | 86 | 31 | 34 | 43 | 42 | |||
| 60 | 10 – 50 | 112 | 38 | 42 | 56 | 55 | |||
| 80 | 10 – 50 | 140 | 50 | 54 | 70 | 69 |
Swipe
| Model | PD | H1 5mm increment |
Color สี |
H2 5mm increment |
Color สี |
Chain Type ประเภทโซ่ |
| 25SEB-S (25SSB x1) 25SEB-W (25SSB x2) |
25 | 10 – 50 | R (สีแดง/Red) Y (สีเหลือง/Yellow) |
10 – 40 | R (สีแดง/Red) Y (สีเหลือง/Yellow) |
S (normal) RS (Strong Chain) |
| 32 | 10 – 60 | 10 – 40 | ||||
| 38 | 15 – 70 | 10 – 50 | ||||
| 50 | 20 – 80 | 10 – 50 | ||||
| 60 | 20 – 80 | 10 – 50 | ||||
| 80 | 20 – 80 | 10 – 50 |
