Mold Socket Elbow 90° (A-Type)

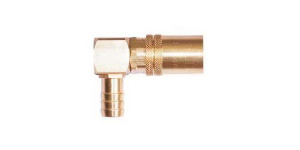

Mold Socket Elbow 90° (A-Type) brass mold fitting for injection mold
Choose from with or without valve
Fitting Types: A 301 / A 401
more
- Model 21301/21401
- Manufacturer Code 301/401/JS
Swipe
_Drawing.jpg "Mold Socket Elbow 90° (A-Type) drawing")
| Order Code | Matching Fitting |
D | L | d | K | S | |
| Valve | No Valve | ||||||
| 21301-L2 | 21301-L2-0 | A 301 |
17 | 46.5 | 7.3 | 9.7 | 6 |
| 21301-L3 | 21301-L3-0 | 10.5 | 6 | ||||
| 21301-L4 | 21301-L4-0 | 14 | 9 | ||||
| 21401-L3 | 21401-L3-0 | A 401 |
22 | 62 | 10.5 | 13.5 | 6 |
| 21401-L4 | 21401-L4-0 | 14 | 9 | ||||
| Order Code | Matching Fitting |
D | L | d | K | S | |
| Valve | No Valve | ||||||
| 21301-L2 | 21301-L2-0 | A 301 |
17 | 46.5 | 7.3 | 9.7 | 6 |
| 21301-L3 | 21301-L3-0 | 10.5 | 6 | ||||
| 21301-L4 | 21301-L4-0 | 14 | 9 | ||||
| 21401-L3 | 21401-L3-0 | A 401 |
22 | 62 | 10.5 | 13.5 | 6 |
| 21401-L4 | 21401-L4-0 | 14 | 9 | ||||
