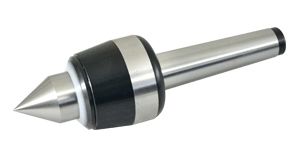

High Speed Live Center for CNC lathe with water proof mechanism.
Load : 500-3000KG
Max RPM : 5000RPM
L Type : The extra long point for small work.
S Type : The points are interchangeable, and are included in the set.

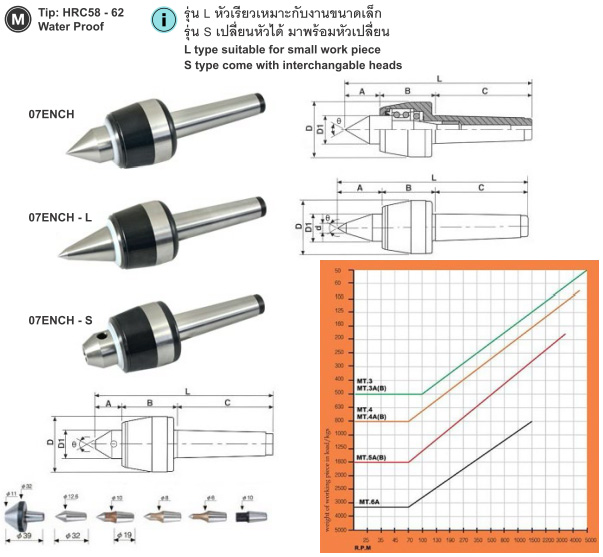

Order Code | Shank Morse Taper |
A | B | C | D | D1 | d | L | Ɵ | Max R.P.M. |
Max Load Kg |
Accuracy |
07ENCH-3 | MT3 | 39 | 55 | 86 | 53 | 30 | - | 180 | 60° | 5000 | 500 | ±0.003 |
07ENCH-5 | MT5 | 49 | 71 | 136 | 83 | 40 | - | 256 | 3500 | 1600 | ||
07ENCH-6 | MT6 | 80 | 110 | 189 | 128 | 70 | - | 379 | 1500 | 3000 | ±0.006 | |
07ENCH-L3 | MT3 | 45 | 55 | 86 | 53 | 30 | 10 | 186 | 5000 | 500 | ±0.003 | |
07ENCH-L4 | MT4 | 52 | 62 | 108 | 63 | 32 | 12 | 218 | 4500 | 800 | ||
07ENCH-L5 | MT5 | 59 | 71 | 136 | 83 | 40 | 14 | 266 | 3500 | 1600 | ±0.005 | |
07ENCH-S3 | MT3 | 28 | 55 | 86 | 53 | 30 | - | 169 | 5000 | 500 | ||
07ENCH-S4 | MT4 | 30 | 62 | 108 | 63 | 32 | - | 196 | 4500 | 800 |
For quotations, let us know the product code and quantity. We will surely get back to you.
