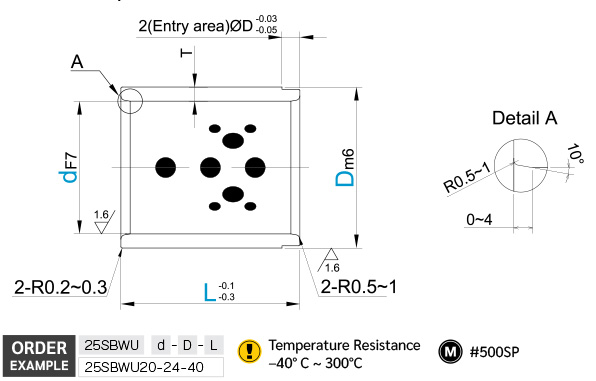

Oil Free Bush (Thin Wall)
Oil Free bush straight type with thin wall 25SBWU for universal use in many dry application such as die/mold, machinery, automation, construction, automobile. The Oil Free bush is self lubrication and work without grease.
Material : #500SP
(High Strength Brass / Copper Alloy + Solid Lubricant)
more
- Model 25SBWU
- Manufacturer Code SBWU/SOBU
Download
Swipe
| d F7 | D m6 | L | Thickness T |
|||||||||||
| 6 | +0.028 +0.010 |
8 | +0.015 +0.006 |
8 | 10 | 12 | 15 | 16 | 1 | |||||
| 8 | +0.028 +0.013 |
10 | 8 | 10 | 12 | 15 | 16 | 20 | ||||||
| 10 | 12 | +0.018 +0.007 |
8 | 10 | 12 | 15 | 16 | 20 | 25 | |||||
| 12 | +0.034 +0.016 |
15 | 10 | 12 | 15 | 16 | 20 | 25 | 1.5 | |||||
| 13 | 16 | 10 | 12 | 15 | 16 | 20 | 25 | |||||||
| 15 | 18 | 10 | 12 | 15 | 16 | 20 | 25 | 30 | ||||||
| 16 | 20 | +0.021 +0.008 |
10 | 12 | 15 | 16 | 20 | 25 | 30 | 2 | ||||
| 18 | 22 | 12 | 15 | 16 | 20 | 25 | 30 | |||||||
| 20 | +0.041 +0.020 |
24 | +0.021 +0.008 |
15 | 16 | 20 | 25 | 30 | 40 | 2 | ||||
| 25 | 29 | 15 | 16 | 20 | 25 | 30 | 40 | |||||||
| 30 | 34 | +0.025 +0.009 |
15 | 16 | 20 | 25 | 30 | 40 | ||||||
| 35 | +0.050 +0.025 |
40 | 20 | 25 | 30 | 40 | 2.5 | |||||||
| 40 | 45 | 20 | 25 | 30 | 40 | 50 | ||||||||
| 50 | 55 | +0.030 +0.011 |
30 | 40 | 50 | |||||||||
