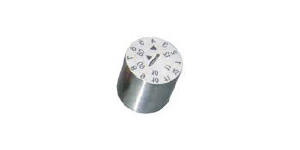

Double Ring Date Marking Pin

Stainless steel Double Ring, Month & Year Date Marking Pin for plastic injection mold.
Save the cost of mold engraving, and the date marking pin can be replace making the maintenance easier.

Model: 21GDZ

more
  • Model 21GDZ
  • Manufacturer Code GDZ/DTBZ/DTEZ
Brand
OIL FREE
OIL FREE
  • Type

    Date Mark

Swipe

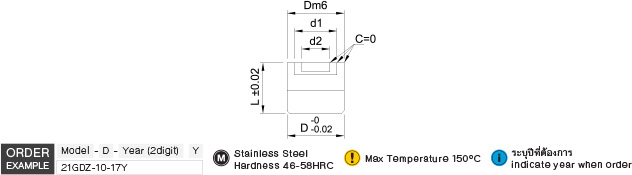

Double Ring Date Marking Pin drawing
Model D d1 d2 L
21GDZ 08 5.8 3.6 20
10 7.0 4.0 20
12 8.5 5.0 20
16 11.5 7.0 20
20 14.0 8.0 20
