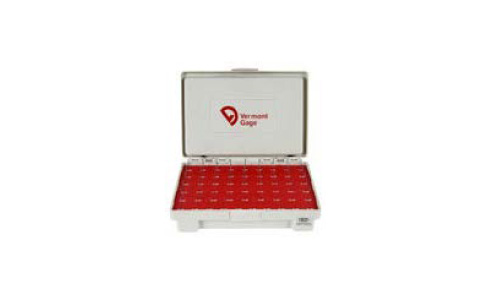

Pin Gage Box
Vermont Gage's Box Set most suitable for part inspection, measure hole size, slot width, Go/NoGo inspection etc. Vermont Gage products are supplied with Certificate of Accuracy.
- Metric size (millimeter)
- Class ZZ (.005mm tolerance)
- Material: Tool Steel
- 0.02mm set increments
- 50mm long
- Marked with size (1.5mm or bigger)
more
- Manufacturer Code Pin Gage/102
View Online
Download
Swipe
| Box Range (0.02 step) | Example | No. of pins | Order Code | Class ZZ Tolerance | |
| Minus / NoGo (-) | Plus / GO (+) | ||||
| 0.20 – 1.28 | 0.20·0.22·0.24....1.28 | 55 | 04102200100 | 04102100100 | (0.00508mm) |
| 0.21 – 1.29 | 0.21·0.23·0.25....1.29 | 55 | 04102400100 | 04102300100 | |
| 1.30 – 4.98 | 1.30·1.32·0.34....4.88 | 185 | 04102200200 | 04102100200 | |
| 1.31 – 4.99 | 1.31·1.33·0.35....4.89 | 185 | 04102400200 | 04102300200 | |
| 5.00 – 9.98 | 5.00·5.02·5.04....9.98 | 250 | 04102200300 | 04102100300 | |
| 5.01 – 9.99 | 5.01·5.03·5.05....9.99 | 250 | 04102400300 | 04102300300 | |
| 10.00 – 13.98 | 10.00·10.02·10.04....13.98 | 200 | 04102200400 | 04102100400 | |
| 10.01 – 13.99 | 10.01·10.03·10.05....13.99 | 200 | 04102400400 | 04102300400 | |
| 14.00 – 16.48 | 14.00·14.02·14.04....16.48 | 125 | 04102200500 | 04102100500 | |
| 14.01 – 16.49 | 14.01·14.03·14.05....16.49 | 125 | 04102400500 | 04102300500 | |
| 16.50 – 18.98 | 16.50·16.52·16.54....18.98 | 125 | 04102200600 | 04102100600 | |
| 16.51 – 18.99 | 16.51·16.53·16.55....18.99 | 125 | 04102400600 | 04102300600 | |
| 19.00 – 20.98 | 19.00·19.02·19.04....20.98 | 100 | 04102200700 | 04102100700 | 19.00 – 20.96 (0.00508mm) 20.96 – 25.49 (0.00610mm) |
| 19.01 – 20.99 | 19.01·19.03·19.05....20.99 | 100 | 04102400700 | 04102300700 | |
| 21.00 – 22.48 | 21.00·21.02·21.04....22.48 | 75 | 04102200800 | 04102100800 | |
| 21.01 – 22.49 | 21.01·21.03·21.05....22.49 | 75 | 04102400800 | 04102300800 | |
| 22.50 – 23.98 | 22.50·22.52·22.54....23.98 | 75 | 04102200900 | 04102100900 | |
| 22.51 – 23.99 | 22.51·22.53·22.55....23.99 | 75 | 04102400900 | 04102300900 | |
| 24.00 – 25.48 | 24.00·24.02·24.04....25.48 | 75 | 04102201000 | 04102101000 | |
| 24.01 – 25.49 | 24.01·24.03·24.05....25.49 | 75 | 04102401000 | 04102301000 | |
