Plain Plug Gage

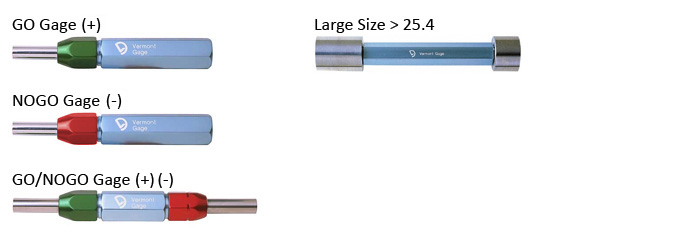

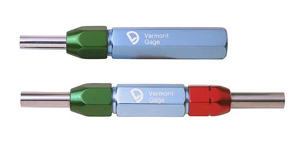

Vermont Gage Plug Gage for Go/NoGo/Master inspection. With one end in green (Go), and another in red (NoGo), or Master plug gage.
- Class XX, X, Y, Z, ZZ
- Material: Steel, Chrome, Carbide
more
- Manufacturer Code Plug Gage
View Online
Download
Swipe
| Size (0.001mm step) |
Class | Tolerance GO(+) · No/Go(-) · Master(±) |
Tool Steel | Chrome Plated / Carbide |
| 0.101 – 20.960 | XX | 0.00051 | O | O |
| X | 0.00102 | O | O | |
| Y | 0.00178 | O | O | |
| Z | 0.00254 | O | O | |
| 20.961 – 25.400 | XX | 0.00076 | O | O |
| X | 0.00152 | O | O | |
| Y | 0.00229 | O | O | |
| Z | 0.00305 | O | O | |
| 25.401 – 38.350 | XX | 0.00076 | O | X |
| X | 0.00152 | O | ||
| Y | 0.00229 | O | ||
| Z | 0.00305 | O | ||
| 38.35 – 63.75 | XX | 0.00102 | O | |
| X | 0.00203 | O | ||
| Y | 0.00305 | O | ||
| Z | 0.00406 | O | ||
| 63.75 – 114.55 | XX | 0.00127 | O | |
| X | 0.00254 | O | ||
| Y | 0.00381 | O | ||
| Z | 0.00508 | O | ||
| 114.55 – 152.65 | XX | 0.00165 | O | |
| X | 0.00330 | O | ||
| Y | 0.00483 | O | ||
| Z | 0.00635 | O |
