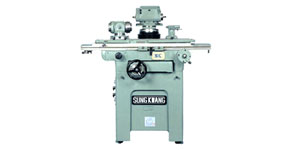

Universal Tool Grinder Machine
Sung Kwang Universal Tool Grinder Machine can grind, and regrind any type of cutting tool.
The machine is suitable for special tooling need. One machine for any part of cutting tool. Special attachment parts can be use for special tooling.
more
- Manufacturer Code C-40
Swipe
| Specification | 70C-40 |
| Swing over table | 250mm. |
| Distance between centers | 700mm. |
| Distance between tailstock and workhead | 580mm. |
| Taper hole of workhead shaft | ASA No.50 NO 12 B & 5 (NO 5 MT) |
| Table | |
| T-Slot | 14.30mm + 0.05mm – 0.05mm |
| Over hole of workhead shaft | 135x940mm. |
| Feed Range | |
| Right and left feed of table | 400mm. |
| Crossfeed of saddle | 250mm. |
| Rotation angle of table | +-60° |
| Adjusting taper of table | +-10° |
| Vertical feed of headstock | 250mm. |
| Rake angle of headstock | +-15° |
| Rotation angle of headstock | 360° |
| Distance between main shaft and table | Max 300mm. Min 50mm. |
| Distance between main shaft and center of T-Slot | Max 415mm. Min 165mm. |
| Rotation speed of main shaft | 2600,3700,6200 RPM |
| Main motor | 0.75kw |
| Installation area | 1550x1744mm. |
| Machine weight | 900kg. |
