LCD Digital Read Out (DRO)

LCD display Digital Read Out for displaying measurement of Linear Scale. Install on Milling or Lathe machine, or to be adapt into other type of machine that need linear distant measurement.
Can be chosen from 3 to 4 Axis.

- Free installation and consulting service
- Free 1 year warranty and after-sale service
- Free 2 years routine check up service!

more
  • Model 15DSC-L100-3A/15DSC-L100-4A/15DSC-L100
  • Manufacturer Code L100/DSC-L100
Brand
Jenix
Jenix
Swipe

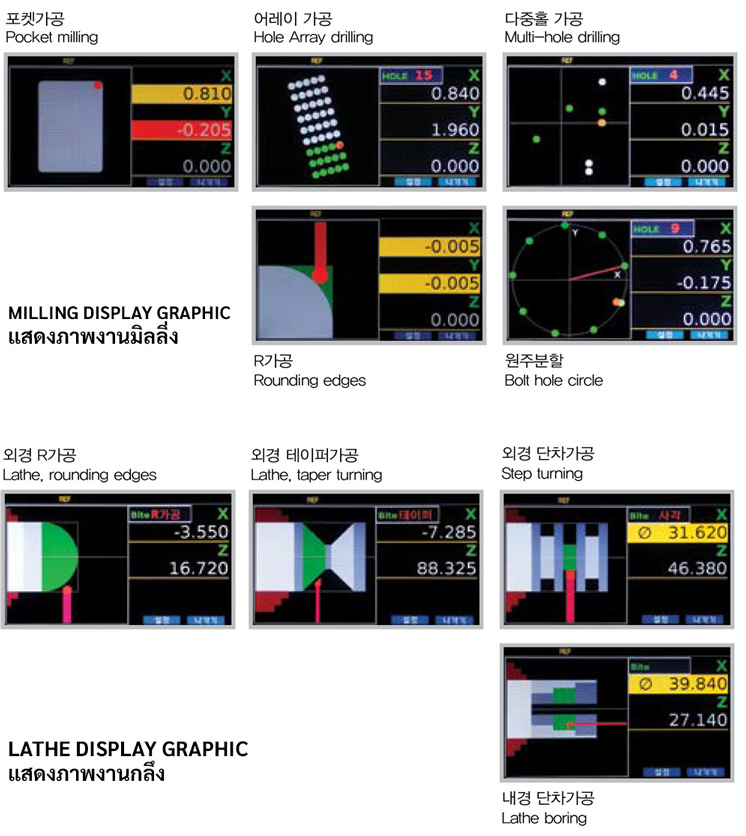

LCD Digital Read Out (DRO) drawing
Description Order Code
15DSC-L100-3A 15DSC-L100-4A
Axis 3 4
Display 9 Digits LCD
Resolution 10㎛, 5㎛, 1㎛, 0.5㎛, 0.1㎛
Inch : 0.002 ~ 0.000004˝
ABS 100 Points (0~99)
Operation Temp. -5 ~ 45℃ / 23 ~ 113℉
Dimension & Weight mm : 279×151×70 (1.8 kg)
inch : 10.9×5.9×2.8 (3.97 lb)
Power AC 110~220V 50/60Hz, 0.6A (DC8.2V 3A)
External Housing Aluminum Die Casting
Keypad Membrane Type
RS232 Comm. Optional
