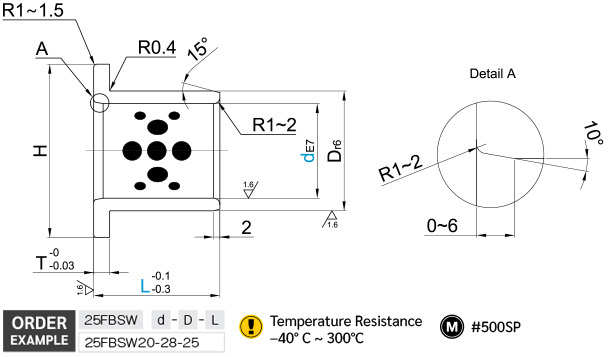

Oil Free Thrust Bush
Oil Free Thrust Bush 25FBSW for universal use in many dry application such as die/mold, machinery, automation, construction, automobile. The Oil Free bush is self lubrication and work without grease.
Material : #500SP
(High Strength Brass / Copper Alloy + Solid Lubricant)
more
- Model 25FBSW
- Manufacturer Code FBSW/SPFG
Download
Swipe
| d E7 | D r6 | L | H | Thickness T |
A | Tolerance d after press-fit | ||||
| 12 | +0.050 +0.032 |
18 | +0.034 +0.023 |
11 | 23 | 30 | 3 | 1 | +0.035 +0.016 |
|
| 15 | 21 | +0.041 +0.028 |
13 | 35 | +0.028 +0.009 |
|||||
| 16 | 22 | 13 | 18 | |||||||
| 18 | 24 | 18 | 40 | |||||||
| 20 | +0.061 +0.040 |
28 | 20 | 25 | 45 | 5 | +0.039 +0.017 |
|||
| 25 | 33 | +0.050 +0.034 |
20 | 25 | 50 | 2 | +0.034 +0.012 |
|||
| 30 | 38 | 25 | 35 | 55 | ||||||
| 35 | +0.075 +0.050 |
44 | 25 | 35 | 65 | +0.048 +0.022 |
||||
| 40 | 50 | 27 | 37 | 47 | 70 | 7 | 3 | +0.045 +0.019 |
||
| 50 | 62 | +0.060 +0.041 |
38 | 48 | 58 | 90 | 8 | 2 | +0.038 +0.012 |
|
| 60 | +0.090 +0.060 |
74 | +0.062 +0.043 |
38 | 68 | 110 | 3 | +0.052 +0.021 |
||
| 70 | 85 | +0.073 +0.051 |
50 | 80 | 120 | 10 | +0.045 +0.014 |
|||
| 80 | 96 | 60 | 90 | 140 | ||||||
