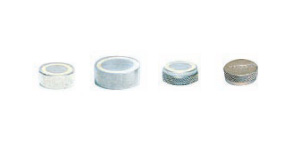

Magnetic Holder

Permanent Magnetic Holder round shapes. The magnetic holder can be use in many application such as holding small work, use in jig-figure, and holding work during wire-cut process.

Model: 03EMH

more
  • Model 03EMH
  • Manufacturer Code EMH
Brand
Earth Chain
Earth Chain
  • Lifting

    Material

    Small Parts

Swipe

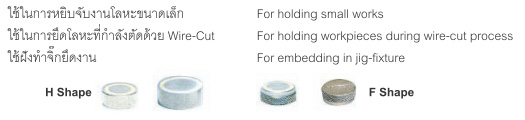

Magnetic Holder drawing
Order Code Shape Holding Power (kgf) Dimension (mm) Weight (kg)
03EMH-10H H 3 Ø10x8 0.005
03EMH-18H 5 Ø18x8 0.016
03EMH-25H 9 Ø25x10 0.04
03EMH-10F F 3 Ø10x8 0.005
03EMH-18F 5 Ø18x8 0.016
03EMH-25F 9 Ø25x10 0.04
