Shim Plate

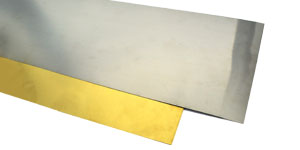

Shim Plate / Shim Stock, stainless shim and brass shim. High hardness and spring characteristic.

Brass shim start from 0.05mm. thickness.
Stainless Steel shim start from 0.01mm. thickness.

Standard Shim widths : *100, 150, 300, 500
(*100 only available for 0.01mm. thickness)
Standard Shim Lengths : 1M, 2M

Order : Code Thickness x Width x Length
Example : 17ST0.10x300x2M

more
  • Model 17ST/17BR
Swipe

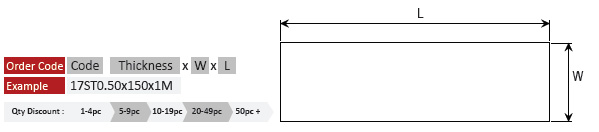

Shim Plate drawing
Stainless Steel Shim
Brass Shim
Code Thickness (mm) W
(mm)
L
(M)
Code Thickness (mm) W
(mm)
L
(M)
17ST 0.01 100 1M 2M 17BR 0.05 150 1M 2M
0.02 150 1M
300 1M 2M
300 1M 2M 0.10 150 1M 2M
0.03 150 1M
300 1M 2M
300 1M 2M 0.20 150 1M 2M
0.04 150 1M
300 1M 2M
300 1M 2M 0.30 150 1M 2M
0.05 150 1M 2M 300 1M 2M
300 1M 2M 0.40 150 1M 2M
0.06 300 1M 2M 300 1M 2M
0.07 300 1M 2M 0.50 150 1M 2M
0.08 300 1M 2M 300 1M 2M
0.09 300 1M 2M 0.80 150 1.2M
0.10 150 1M 2M 1.00 150 1M 2M
300 1M 2M 300 1M 2M
0.20 150 1M 2M
300 1M 2M
0.25 300 1M 2M
0.30 150 1M 2M
300 1M 2M
0.40 150 1M 2M
300 1M 2M
500 1M 2M
0.50 150 1M 2M
300 1M 2M
0.60 150 1M
0.70 150 1M 2M
300 1M 2M
0.80 150 1M
300 1M 2M
1.00 150 1M 2M
300 1M 2M
1.20 150 1M
1.50 150 1M
2.00 150 1M 2M
300 1M 2M
3.00 150 1M
4.00 150 1M
5.00 150 1M
