Center Drill (Form A)

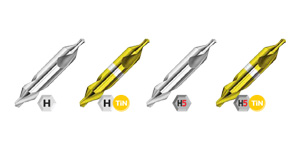

Standard center drills (Form A) 60° Magafor

Available in materials

  • High Speed Steel (HSS)
  • High Speed Steel with Cobalt (HSSE)
  • Carbide

Matching Standards : ISO / NFE 66051-A / DIN 333-A / JIS-1

more
  • Model 0611/06690/0610/060811/06105/060910/068100/0608100H
  • Manufacturer Code 11/690/10/0811/105/0910/8100/08100H
Brand
Magafor
Magafor
  • Form

    Form A

  • Materials

    HSS

    HSSE

    Carbide

  • Styles

    ISO

  • Sizes

    mm

Swipe

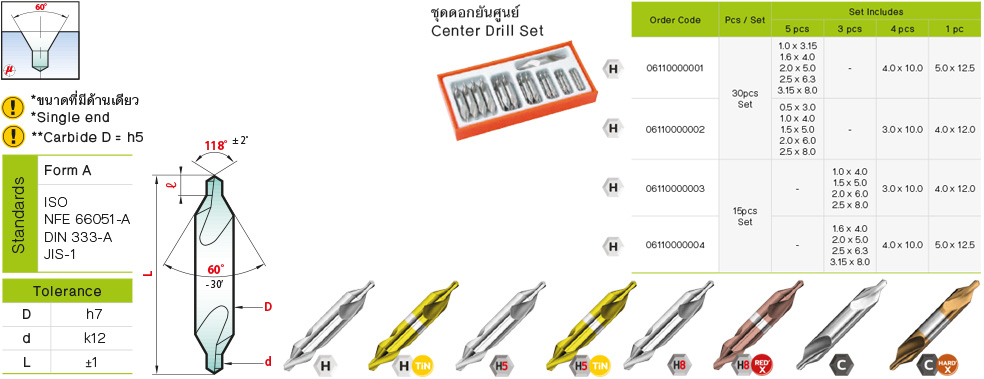

Center Drill (Form A) drawing
D x d L ℓ Order Code
min ~ max HSS HSS+TiN HSSE HSSE+TiN HSSE8 HSSE8+Red’X Carbide Carbide+Hard’X
Model 0611 Model 06690 Model 0610 Model 060811 Model 06105 Model 060910 Model 068100 Model 0608100H
3.0 x 0.5 31 0.6 ~ 0.9 06110305000






3.15 x 0.5* 25 0.6 ~ 0.9 06110315050
06100315050 06081103105

06810003105 068100H031505
3.15 x 0.63* 25 0.7 ~ 1.0 06110315063






3.15 x 0.8* 25 1.0 ~ 1.3 06110315080
06100315080 06081103108

06810003108 068100H031508
3.15 x 1.0 31 1.3 ~ 1.7 06110315100 06690031010 06100315100 06081103151 06105031510 06091003151 06810003151 068100H03151
3.15 x 1.25 31 1.6 ~ 2.0 06110315125 06690031012 06100315125 06081103125 06105031512 06091003125 06810003125 068100H0315125
3.5 x 0.75 35 1.0 ~ 1.3 06110350750
06100350750 060811035075



4.0 x 1.0 35 1.3 ~ 1.7 06110410000 06690040010 06100410000 06081104100

06810004100 068100H0410
4.0 x 1.25 35 1.6 ~ 2.0 06110412500






4.0 x 1.6 35 2.0 ~ 2.6 06110416000 06690040016 06100416000 06081104160 06105041600 06091004160 06810004160 068100H0416
5.0 x 1.5 40 2.0 ~ 2.6 06110515000 06690050015 06100515000 06081105150

06810005150 068100H0515
5.0 x 1.6 40 2.0 ~ 2.6 06110516000






5.0 x 2.0 40 2.5 ~ 3.1 06110520000 06690050020 06100520000 06081105200 06105052000 06091005200 06810005200 068100H0520
6.0 x 2.0 45 2.5 ~ 3.1 06110620000 06690060020 06100620000 06081106200

06810006200 068100H0620
6.3 x 2.0 45 2.5 ~ 3.1 06110632000






6.3 x 2.5 45 3.1 ~ 3.8 06110632500 06690063025 06100632500 06081106325 06105063250 06091006325 06810006325 068100H06325
8.0 x 2.5 50 3.1 ~ 3.8 06110825000
06100825000 06081108250

06810008250 068100H0825
8.0 x 3.0 50 3.9 ~ 4.6 06110830000 06690080030 06100830000 06081108300

06810008300 068100H0830
8.0 x 3.15 50 3.9 ~ 4.6 06110831500 06690080031 06100831500 06081108315 06105083150 06091008315 06810008315 068100H08315
10.0 x 3.0 55 3.9 ~ 4.6 06111030000 06690100030 06101030000 06081110300

06810010300 068100H1030
10.0 x 3.15 55 3.9 ~ 4.6 06111031500






10.0 x 4.0 55 5.0 ~ 5.9 06111040000 06690100040 06101040000 06081110400 06105104000 06091010400 06810010400 068100H1040
12.0 x 4.0 63 5.0 ~ 5.9 06111240000 06690120040 06101240000 06081112400



12.0 x 5.0 63 6.3 ~ 7.2 06111250000
06101250000 06081112500

06810012500 068100H1250
12.5 x 4.0 63 5.0 ~ 5.9 06111254000






12.5 x 5.0 63 6.3 ~ 7.2 06111255000 06690125050 06101255000 06081112550 06101255000 06091012550 06810012550 068100H1255
14.0 x 5.0 69 6.3 ~ 7.2 06111450000
06101450000 06081114500



16.0 x 5.0 71 6.3 ~ 7.2 06111650000






16.0 x 6.3 71 8.0 ~ 8.9 06111663000 06690160063
06081116630

06810016630 068100H1663
18.0 x 6.0 77 8.0 ~ 8.9 06111860000






20.0 x 6.3 80 8.0 ~ 8.9 06112063000






20.0 x 8.0 80 10.1 ~ 11.1 06112080000 06690200080
06081120800



25.0 x 10.0 100 12.8 ~ 13.8 06112510000






25.0 x 8.0 100 10.1 ~ 11.1 06112580000






31.5 x 10.0 125 12.8 ~ 13.8 06113151000






31.5 x 12.5 125 16.5 ~ 17.5 06113151250
