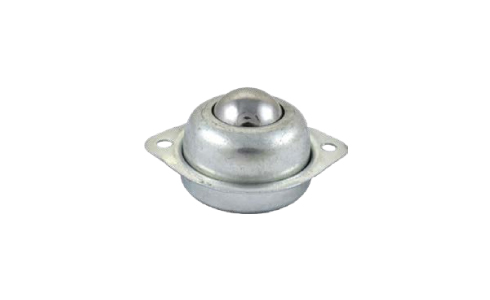

Cup Mount Ball Roller

Ball Roller unit mounting in middle of body model 25SSBRE for transfer units.

more
  • Model 25SSBRE
  • Manufacturer Code 25SSBRE25
Brand
SRT
SRT
  • Mounting

    Base Mount

  • Ball

    Bearing Steel

  • Usage

    Light Duty

  • Shape

    Base Mount

    Press Fit

Swipe

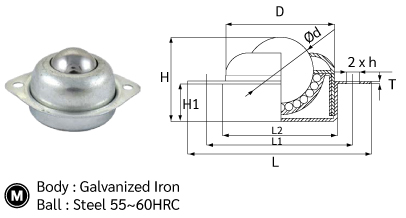

Cup Mount Ball Roller drawing
Order Code Ball d D L L1 L2 H H1 T h
(for screw)
Load
Capacity
Max Load Capacity Net
Weight
25SSBRE25 25.4mm 1” 42 69 59 45 32 12 1 5.5 20kg 25kg 150g
