Heavy Duty Top Type Ball Roller

Heavy Duty SI type model 25SSBRSI for assembly into transfer units.

more
  • Model 25SSBRSI
  • Manufacturer Code 25SSBRSI12/25SSBRSI25/25SSBRSI30/25SSBRSI38/25SSBRSI51
Brand
SRT
SRT
  • Mounting

    Base Mount

  • Ball

    Bearing Steel

  • Usage

    Heavy Duty

  • Shape

    Base Mount

Swipe

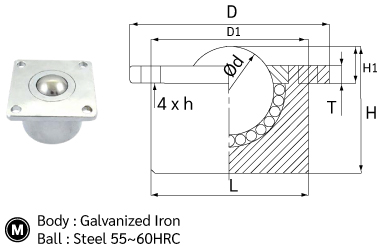

Heavy Duty Top Type Ball Roller drawing
Order Code Ball d D D1 L H H1 T h
(for screw)
Load
Capacity
Max Load Capacity Net
Weight
25SSBRSI12 12mm 1/2” 45 35 24 24 7 4 4 15kg 20kg 100g
25SSBRSI25 25.4mm 1” 57 45 45 42 10.3 4.7 6 150kg 200kg 490g
25SSBRSI30 30.16mm 1-3/16” 68 54 54 50 12.5 6 6.5 250kg 300kg 1100g
25SSBRSI38 38.1mm 1-1/2” 76 58 60 62 25.4 12.7 7 350kg 400kg 1400g
25SSBRSI51 51mm 2” 127 102 102 98 33.3 19 11 600kg 700kg 6400g
