Heavy Duty Round Base Mount Ball Roller

Heavy Duty IA type model 25SSBRIA for assembly into transfer units.

more
  • Model 25SSBRIA
  • Manufacturer Code 25SSBRIA19/25SSBRIA25/25SSBRIA38
Brand
SRT
SRT
  • Mounting

    Base Mount

  • Ball

    Bearing Steel

  • Usage

    Heavy Duty

  • Shape

    Base Mount

    Saucer

Swipe

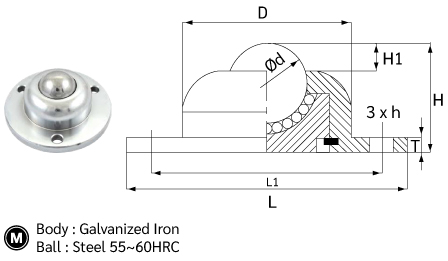

Heavy Duty Round Base Mount Ball Roller drawing
Order Code Ball d D L L1 H H1 T h
(for screw)
Load
Capacity
Max Load Capacity Net
Weight
25SSBRIA19 19mm 3/4” 40 67 55 26 6.5 5 5.5 80kg 100kg 220g
25SSBRIA25 25.4mm 1” 45 72 58 32 8.5 5 6.5 130kg 150kg 320g
25SSBRIA38 38.1mm 1-1/2” 60 95 80 47 13 5 6.5 200kg 250kg 810g
