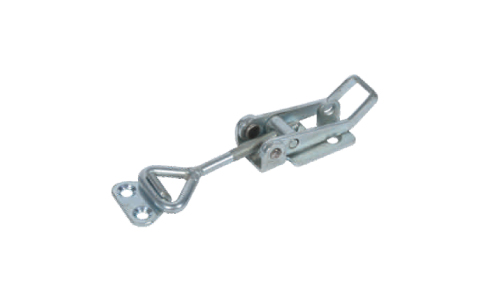

Light-Duty Horizontal Latch Clamp (Lockable)
Light-duty pull-action lockable horizontal latch type toggle clamp.
Model: 11LC
more
- Model 11LC
- Manufacturer Code LC
Download
View Online
Download
Swipe
| Order Code |

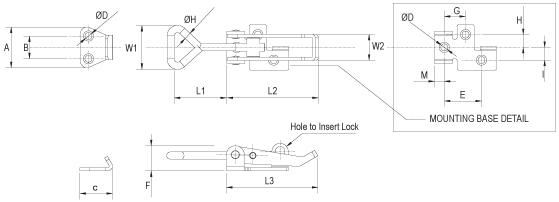

L1 | L2 | F | W1 | W2 | A | B | C | ØD | ØH | E | M | G | H | I | HOLDING CAPACITY | N. W. Kgs. |
| 11LC-50-L | 18~38 | 55 | 14 | 27 | 16 | 25 | 14 | 20 | 4.3 | 4.4 | 23 | 6 | 13 | 8 | 8 | 70 Kgs. | 0.05 |
| 11LC-80-L | 20~54 | 67 | 18 | 32 | 20 | 30 | 17 | 22 | 5.3 | 5.3 | 27 | 14 | 10 | 8 | 9 | 80 Kgs. | 0.095 |
