Horizontal Pull-Action Toggle Clamp (New Serie)

Horizontal pull-action latch type toggle clamp.

Model: 11PAC

more
  • Model 11PAC
  • Manufacturer Code PAC
Brand
Toolfast
Toolfast
  • Clamp Style

    Pull-Action

  • Body Material

    Steel

Swipe

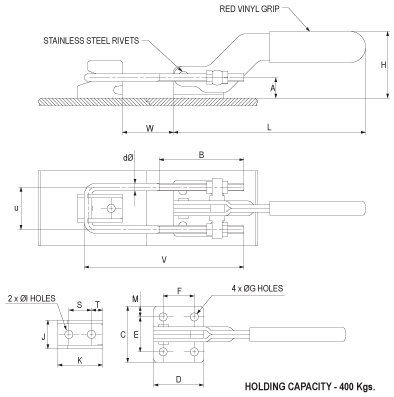

Horizontal Pull-Action Toggle Clamp (New Serie) drawing
Order
Code		 A dØ U V B
THREAD LENGTH		 W MOUNTING BASE OF CLAMP MOUNTING BASE
OF LATCH PLATE		 H L HOLDING CAPACITY N. W. Kgs.
Min. Max. C D E F M N GØ J K S T IØ
11PAC-416-H 15 4Ø 22 88 52 5 42 30 26 20 16 5 5 4.5Ø 15 30 11 9.5 4.5Ø 35 100 100 Kgs. 0.13
11PAC-625-H 17 6Ø 34 128 68 5 55 45 28 28 25 8.5 7.5 6.5Ø 23 36 18 9.5 6.5Ø 54 156 400 Kgs. 0.42
11PAC-840-H 26 8Ø 48 165 87 5 66 60 40 40 40 10 10 8.5Ø 60 46 22 8.5 8.5Ø 66 185 900 Kgs. 0.90
