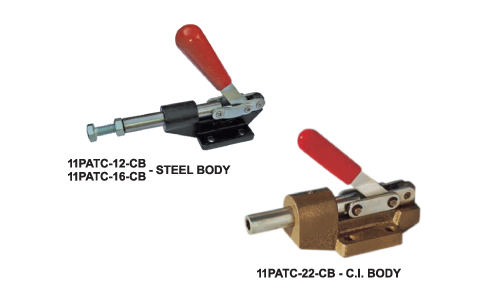

Push-Action Toggle Clamp (Center Base)

Push-Action Toggle Clamp (Center Base) with steel and cast iron body.

Model: 11PATC

more
  • Model 11PATC
  • Manufacturer Code PATC
Brand
Toolfast
Toolfast
  • Clamp Style

    Push-Action

  • Body Material

    Steel

Swipe
Push-Action Toggle Clamp (Center Base) drawing
Order
Code		 PLUNGER DIA dØ TØ A PLUNGER TRAVEL B MOUNTING BASE I J MAX. K L HOLDING CAPACITY BODY N. W. Kgs.
C D E F M N ØG
11PATC-12-CB 12Ø M-8x1.25 26 30 55 55 35 35 10 10 6.8Ø 6 35 28 100 400 Kgs. STEEL 0.51
11PATC-1238-CB 12Ø M-8x1.25 26 30 55 55 38 38 8.5 8.5 6.8Ø 6 35 28 100 400 Kgs. STEEL 0.51
11PATC-16-CB 16Ø M-10x1.5 35 36 60 67 40 40 10 13.5 8.5Ø 7 43 38 125 700 Kgs. STEEL 1.00
11PATC-1642-CB 16Ø M-10x1.5 35 36 60 67 42 42 9 12.5 6.8Ø 7 43 38 125 700 Kgs. STEEL 1.00
11PATC-22-CB 22Ø M-12x1.75 45 60 75 75 50 50 12.5 12.5 10.5Ø 16 62 46 162 1000 Kgs. C.I. 2.80
