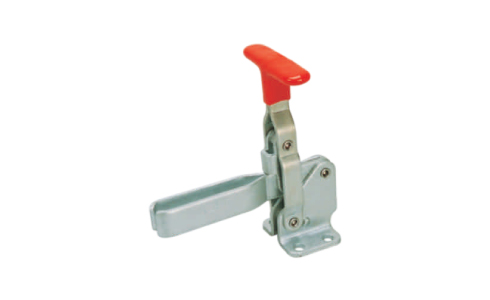

Vertical Hold-Down Toggle Clamp (T-Handle)

Hold down toggle clamp with t handle

Model: 11VHDT

more
  • Model 11VHDT
  • Manufacturer Code VHDT
Brand
Toolfast
Toolfast
  • Clamp Style

    Hold-Down

  • Body Material

    Steel

Swipe
Vertical Hold-Down Toggle Clamp (T-Handle) drawing
Order
Code		 ARM TYPE A B MAX. MOUNTING BASE I J SUITABLE FOR SPINDLE DIA H HOLDING CAPACITY N. W. Kgs.
C D E F M N ØG
11VHDT-25-TU U-ARM 25 35 40 26 27 13 6.5 6.5 5.5Ø 10 M-6 80 100 Kgs. 0.18
11VHDT-32-TU U-ARM 32 65 43 35 32 19 5.5 8 6.8Ø 16 M-8 115 200 Kgs 0.34
