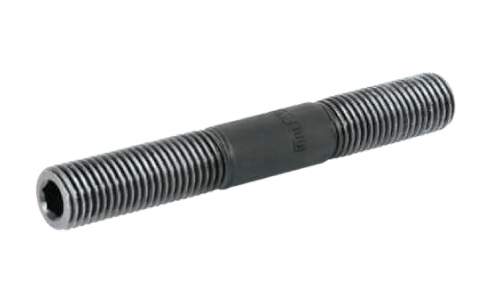

Clamping Stud model 11TCSB with hexagon key hole. Long thread clamping stud for tighten into tapped hole on machine bed.
Model: 11TCSB
Stud
Order Code |
dØ THREAD SIZE | L | B1 | B | H | N. W. Kgs. |
11TCSB-12-100 | M-12 | 100 | 30 | 40 | 6 | 0.07 |
11TCSB-12-125 | 125 | 50 | 0.09 | |||
11TCSB-12-150 | 150 | 65 | 0.12 | |||
11TCSB-12-175 | 175 | 80 | 0.13 | |||
11TCSB-16-125 | M-16 | 125 | 40 | 50 | 8 | 0.17 |
11TCSB-16-150 | 150 | 65 | 0.20 | |||
11TCSB-16-175 | 175 | 80 | 0.23 | |||
11TCSB-16-200 | 200 | 100 | 0.27 | |||
11TCSB-18-150 | M-18 | 150 | 40 | 65 | 8 | 0.30 |
11TCSB-18-175 | 175 | 80 | 0.35 | |||
11TCSB-18-200 | 200 | 100 | 0.40 | |||
11TCSB-20-150 | M-20 | 150 | 50 | 60 | 10 | 0.31 |
11TCSB-20-175 | 175 | 70 | 0.37 | |||
11TCSB-20-200 | 200 | 80 | 0.43 | |||
11TCSB-22-150 | M-22 | 150 | 50 | 60 | 10 | 0.45 |
11TCSB-22-175 | 175 | 70 | 0.53 | |||
11TCSB-22-200 | 200 | 80 | 0.60 | |||
11TCSB-24-175 | M-24 | 175 | 60 | 70 | 12 | 0.52 |
11TCSB-24-200 | 200 | 80 | 0.60 | |||
11TCSB-24-225 | 225 | 90 | 0.68 |
For quotations, let us know the product code and quantity. We will surely get back to you.
