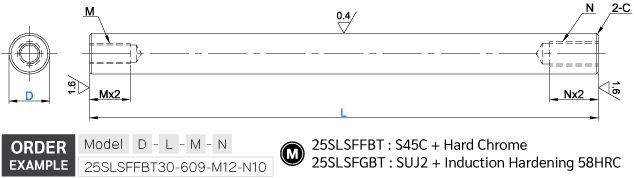

Precision Linear Shaft can be chosen from 2 different tolerances. Material S45C & SUJ2, hard chrome or induction treatment. Both ends are tapped with selectable M thread.
25SLSFFBT : straight shaft S45C with Hard Chrome
25SLSFGBT : straight shaft SUJ2 Induction Hardening 58HRC
How to Order: Model+D - L - M - N
Example: 25SLSFFBT30-609-M12-N10
*Customize specification available, please contact our sales
Model | Tolerance | Material | Surface |
25SLSFFBT | f8 | S45C | Hard Chrome |
25SLSFGBT | g6 | SUJ2 | Induction Hardening 58HRC |
Model | D | L (1mm increment) | M,N | C | |||||||||||
25SLSFFBT | 25SLSFGBT | ||||||||||||||
25SLSFFBT 25SLSFGBT |
6 | 20-800 | 20-600 | 3 | 0.5 | ||||||||||
8 | 20-1000 | 20-800 | 3 | 4 | 5 | ||||||||||
10 | 20-1000 | 20-800 | 3 | 4 | 5 | 6 | |||||||||
12 | 20-1200 | 20-1000 | 4 | 5 | 6 | 8 | |||||||||
13 | 25-1200 | 25-1000 | 4 | 5 | 6 | 8 | |||||||||
15 | 25-1200 | 25-1000 | 4 | 5 | 6 | 8 | 10 | ||||||||
16 | 30-1200 | 30-1200 | 4 | 5 | 6 | 8 | 10 | ||||||||
20 | 30-1200 | 30-1200 | 4 | 5 | 6 | 8 | 10 | 12 | 1 | ||||||
25 | 35-1200 | 35-1200 | 4 | 5 | 6 | 8 | 10 | 12 | 16 | ||||||
30 | 35-1500 | 35-1500 | 6 | 8 | 10 | 12 | 16 | 20 | |||||||
35 | 35-1500 | 35-1500 | 8 | 10 | 12 | 16 | 20 | 24 | |||||||
40 | 50-1500 | 50-1500 | 10 | 12 | 16 | 20 | 24 | 30 | |||||||
50 | 65-1500 | 65-1500 | 12 | 16 | 20 | 24 | 30 |
For quotations, let us know the product code and quantity. We will surely get back to you.
