Linear Pipe Shaft, One End Tapped

Precision Linear Pipe Shaft, choose overall length L with 1mm increment. One end with selectable tapped hole.

25SLSFGHOT : straight shaft SUJ2 Induction Hardening 58HRC

How to Order: Model+D - d - L - M
Example: 25SLSFGHOT35-19-350-M24

*Customize specification available, please contact our sales

more
  • Model 25SLSFGHOT
Brand
OIL FREE
OIL FREE
Swipe

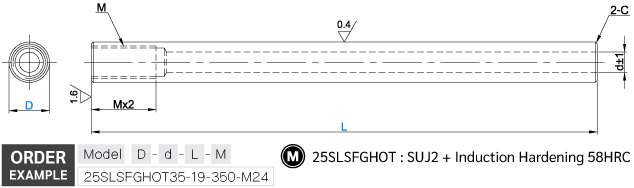

Linear Pipe Shaft, One End Tapped drawing
Model Tolerance Material Surface
25SLSFGHOT g6 SUJ2 Induction Hardening 58HRC
Model Tolerance Material Surface
25SLSFGHOT g6 SUJ2 Induction Hardening 58HRC
Swipe
Model D L (1mm increment) M d C
25SLSFGH
25SLSFGH 6 20-500 3









2 0.5
8 20-500
4 5







3
10 20-600

5 6






4
12 20-1000



8





6
13 25-1000




10




7
16 30-2000




10 12



8
20 30-2000





12 16


10 1
20 30-2000






16


14
25 35-3000







20

15
30 35-3000







20

16
35 35-3000








24
19
40 50-3000








24 30 20
50 65-3000









30 26
Model D L (1mm increment) M d C
25SLSFGH
25SLSFGH 6 20-500 3









2 0.5
8 20-500
4 5







3
10 20-600

5 6






4
12 20-1000



8





6
13 25-1000




10




7
16 30-2000




10 12



8
20 30-2000





12 16


10 1
20 30-2000






16


14
25 35-3000







20

15
30 35-3000







20

16
35 35-3000








24
19
40 50-3000








24 30 20
50 65-3000









30 26
