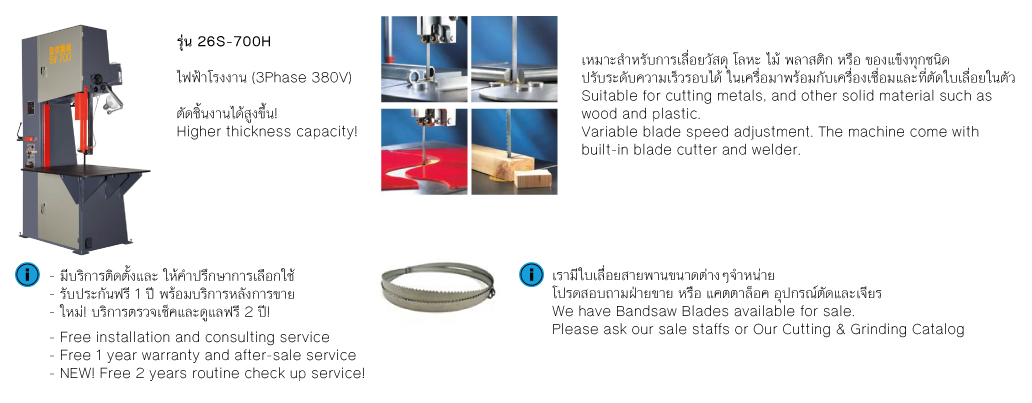

Vertical Band Saw Machine S-700H
Vertical Band Saw Machine extra height 'SW' made in Taiwan. The machine can cut work piece in straight line or cut shapes fast and accurately. Easy to use and long life time.
Suitable for cutting metals, and other solid material such as wood and plastic. The machine come with built-in blade cutter and welder.
We provide after sale service by our technician.
more
- Model 26S-700H
- Manufacturer Code S-700H
Download
View Online
Download
Swipe
| Order Code | 26S-700H |
| Max. Thickness Capacity | 700mm |
| Max. Throat Capacity | 710mm |
| Table Incline (front & rear) | 0° |
| Table Incline (left & right) | 0° |
| Table Size | 900 x 900mm |
| Max. Blade Length | 5500mm |
| Main Motor | 3HP (2.2kW) |
| Blade Speed (M/min) | 85-900M/min |
| Dimension | L : 1830mm W : 1650mm H : 2700mm |
| Butt-Welder Capacity | 19mm |
| Max. Blade Width | 35mm |
| Electrical Power *options are available |
3Phase (220/380V) |
| Weight | 860kgs |
