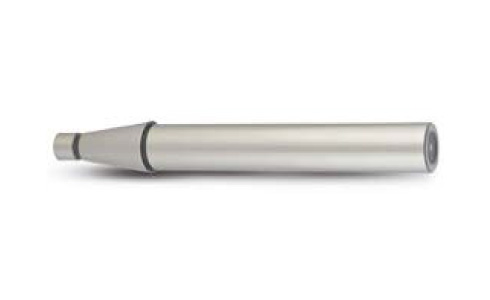

NT Test Arbor
NT arbor test bar for testing run out of the machine NT tooling system.
more
- Manufacturer Code TA
View Online
Download
Swipe
| Order Code | NT | D | L | Roundness | Concentricity | Draw Bolt |
Weight (kg) |
| 07NT30-TA30-200 | 30 | 30 | 200 | < 0.003 | < 0.005 | 1/2”-12 or M12x1.75P |
2.40 |
| 07NT30-TA30-300 | 30 | 300 | 2.70 | ||||
| 07NT40-TA40-250 | 40 | 40 | 250 | 5/8”-11 or M16x2.0P |
3.80 | ||
| 07NT40-TA40-300 | 40 | 300 | 4.20 | ||||
| 07NT40-TA40-350 | 40 | 350 | 5.00 | ||||
| 07NT50-TA40-300 | 50 | 40 | 300 | 1”-8 or M24x3.0P |
6.20 | ||
| 07NT50-TA40-350 | 40 | 350 | 6.60 | ||||
| 07NT50-TA40-400 | 40 | 400 | 7.10 | ||||
| 07NT50-TA63-300 | 63 | 300 | 10.90 | ||||
| 07NT50-TA63-350 | 63 | 350 | 11.60 | ||||
| 07NT50-TA63-400 | 63 | 400 | 12.70 |
