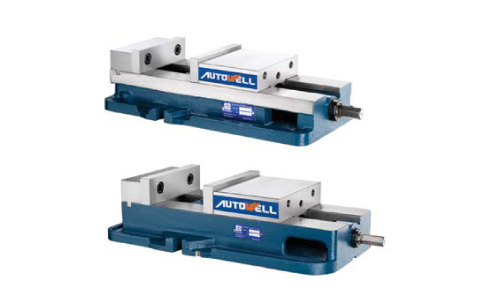

Autowell ATW vise suitable for milling machine work clamping with high clamping force, and precision machining from Wellock reduced-lifting mechanism.
This vise is Match Vise and can be use in row for vise of the same model due to precision vise base height.
Wellock : Reduced workpiece lifting
Body Material : FCD-60
Body Hardness : HS65
Jaw Material : S50C
Jaw Hardness : HRC54
Bed Height : +- 0.012

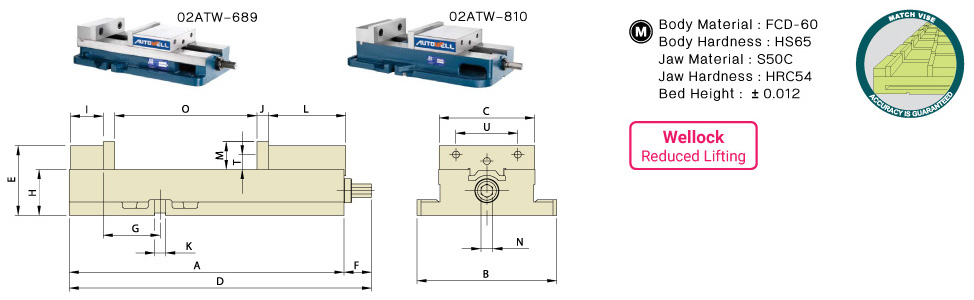

Order Code | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | T | U | Weight |
02ATW-689 | 437 | 222 | 151 | 481 | 111.025 | 44 | 90.5 | 73.025 | 52 | 18 | 18 | 123 | 44.5 | 19 | 226 | 23.6 | 98.4 | 36.3kg |
02ATW-810 | 555 | 295 | 206 | 615 | 134.074 | 60 | 125.7 | 84.074 | 58 | 24.2 | 18 | 157 | 56 | 19 | 265 | 32 | 120 | 68.2kg |
For quotations, let us know the product code and quantity. We will surely get back to you.
