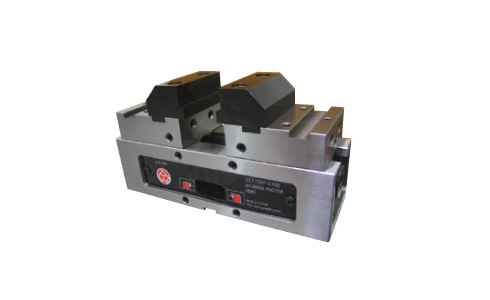

Wellock 5 Axis Machine Vise

Autowell ALT-75 5 axis vise suitable for CNC machine work clamping with high clamping force, and precision machining from Wellock reduced-lifting mechanism.

Wellock : Reduced workpiece lifting

Center Tolerance : +- 0.01
Body Material : SKS3
Side Surface : Flame Hardened

more
  • Model 02ALT-75
  • Manufacturer Code ALT-75
Brand
Autowell
Autowell
  • Holding System

    Wellock

  • Speciality

    5 Axis

Swipe

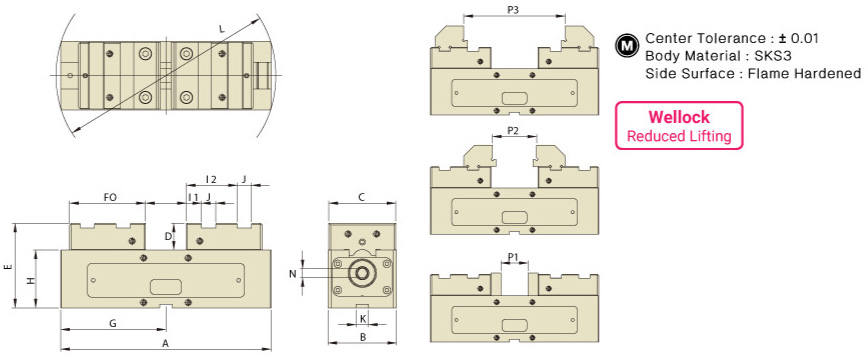

Wellock 5 Axis Machine Vise drawing
Order Code A B C D E F G H I1 I2 J K L N O P1 P2 P2 Clamping
Force		 Weight
02ALT-75S 196 77 75 30 95 85 98 65 17 57 16 14 210 10 30 - 26 106 20KN 8kg
02ALT-75M 236 77 75 30 95 85 118 65 17 57 16 14 250 10 70 40 66 146 20KN 10kg
