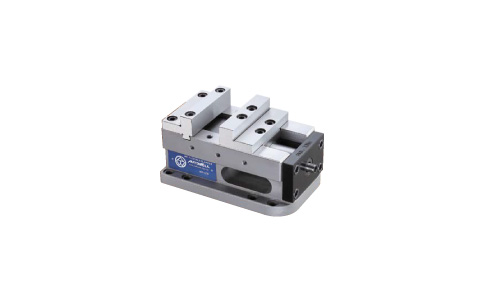

Wellock 5 Axis Mechanical Power Vise

Autowell AEX 5 axis vise with high clamping force MC Mechanical Power system. Suitable for CNC machine work clamping with high clamping force, and precision machining from Wellock reduced-lifting mechanism.

MC Power : High clamping force vise
Wellock : Reduced workpiece lifting

Body Material : SKS3
Body Hardness : HS65
Jaw Material : S50C
Jaw Hardness : HRC54

more
  • Model 02AEX
  • Manufacturer Code AEX
Brand
Autowell
Autowell
  • Holding System

    MC Power

    Wellock

  • Speciality

    5 Axis

Swipe

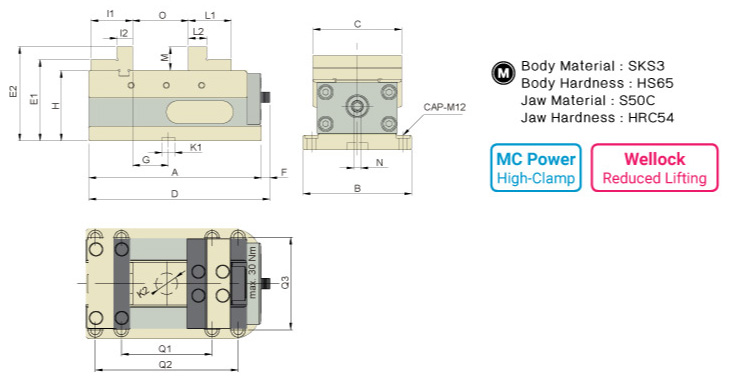

Wellock 5 Axis Mechanical Power Vise drawing
Order Code A B C D E E1 E2 F G H I1 I2 K1
02AEX-125G 245 154 126 257 34 116 134 12 51 100 59 22 18
Swipe
Order Code K2 L1 L2 M N O Q1 Q2 Q3 Force Clamping Weight
02AEX-125G ø30 61 26 34 10 102 127 200 130 40KN 20kg
