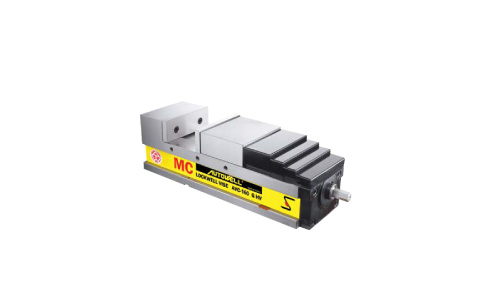

Wellock MC Machine Vise
Autowell AVC / APC suitable for CNC machine work clamping with high clamping force, and precision machining from Wellock reduced-lifting mechanism.
This vise is Match Vise and can be use in row for vise of the same model due to precision vise base height.
Wellock : Reduced workpiece lifting
Body Material : FCD-60
Body Hardness : HS65
Jaw Material : S50C
Jaw Hardness : HRC54
more
- Model 02AVC/02APC
- Manufacturer Code AVC/APC
View Online
Download
Swipe

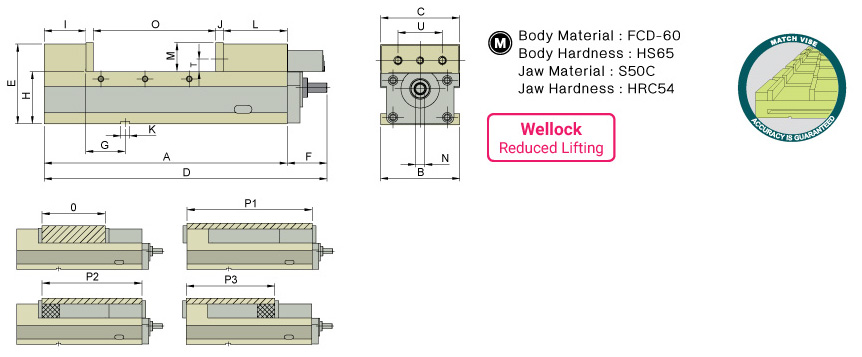

| Order Code | A | B | C | D | E | F | G | H | I | J | K | L | M |
| 02AVC-100G | 350 | 101 | 100 | 430 | 130 | 80 | 45 | 85 | 65 | 15 | 18 | 105 | 48 |
| 02AVC-130G | 415 | 131 | 130 | 495 | 147 | 80 | 65 | 95 | 70 | 15 | 18 | 115 | 55 |
| 02AVC-160G | 495 | 161 | 160 | 576 | 160 | 81 | 80 | 105 | 85 | 15 | 18 | 130 | 58 |
| 02AVC-165G | 560 | 161 | 160 | 641 | 160 | 81 | 80 | 105 | 85 | 15 | 18 | 130 | 58 |
| 02AVC-200G | 580 | 201 | 200 | 670 | 170 | 90 | 100 | 110 | 90 | 18 | 18 | 150 | 63 |
| 02APC-160G | 560 | 161 | 160 | 641 | 155 | 81 | 80 | 100 | 85 | 15 | 18 | 130 | 58 |
Swipe
| Order Code | N | O | P1 | P2 | P3 | T | U | Weight |
| 02AVC-100G | 19 | 150 | 150-330 | 150-240 | 150-200 | 22 | 60 | 21kg |
| 02AVC-130G | 19 | 201 | 201-400 | 201-300 | 201-250 | 25 | 90 | 35kg |
| 02AVC-160G | 19 | 245 | 250-480 | 250-330 | 250-330 | 25 | 90 | 52kg |
| 02AVC-165G | 19 | 310 | 315-545 | 315-395 | 315-395 | 25 | 90 | 61kg |
| 02AVC-200G | 19 | 290 | 290-550 | 290-370 | 290-370 | 28 | 120 | 75kg |
| 02APC-160G | 19 | 310 | 315-545 | 315-435 | 315-395 | 25 | 90 | 61kg |
