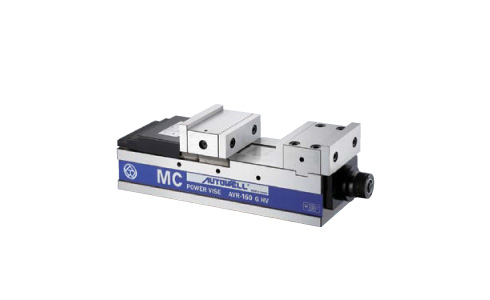

MC Mechanical Reversed Power Vise

Autowell AVR vise, clamping side near user to help reduce the reach needs when changing work.

This vise is Match Vise and can be use in row for vise of the same model due to precision vise base height.

Body Material : FCD-60
Body Hardness : HS65
Jaw Material : S50C
Jaw Hardness : HRC54

MC Power : High clamping force vise
Adjustable : Allow adjusting clamping force

more
  • Model 02AVR
  • Manufacturer Code AVR
Brand
Autowell
Autowell
  • Holding System

    MC Power

    Adjustable

  • Speciality

    Match Vise

Swipe

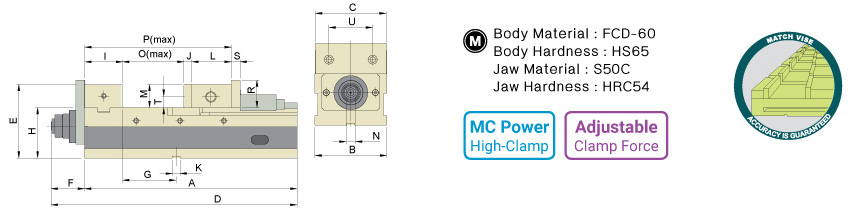

MC Mechanical Reversed Power Vise drawing
Order Code A B C D E F G H I J K L M
02AVR-125G 390 127 124.7 460 153 70 66 100 78 15 18 87.5 53
02AVR-160G 515 161 159.5 591 168 76 76 115 86 18 18 80 53
Swipe
Order Code N O P Q R S T U Clamping Force Weight
02AVR-125G 19 173 353.5 22.5 63 20 26.5 60 35KN 46kg
02AVR-160G 19 289 474 25 63 20 26.5 98.4 45KN 76kg
