Guide Bushs for Large Mold
Guide Bushs for Large Mold for plastic injection mold
Models:

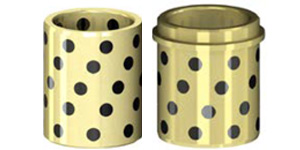

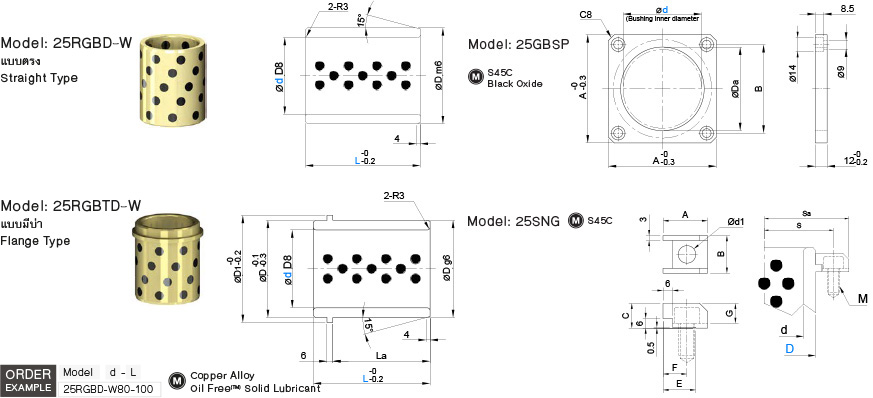

25RGBD-W (Straight Type Copper Alloy + Oil FreeTM)
25RGBTD-W (Flange Type Copper Alloy + Oil FreeTM)
more
- Model 25RGBD-W/25RGBTD-W
- Manufacturer Code RGB/RGBTD
View Online
Download
Swipe
| Model | d D8 | L | D | D tolerance | D1 | La | ||
| 25RGBD-W m6 |
25RGBTD-W g6 |
|||||||
| 25RGBD-W 25RGBTD-W |
60 | +0.146 +0.100 |
70 | 80 | +0.030 +0.011 |
-0.010 -0.029 |
90 | 53 |
| 90 | 73 | |||||||
| 80 | 100 | 100 | +0.035 +0.013 |
-0.012 -0.034 |
110 | 80 | ||
| 120 | 100 | |||||||
Swipe
| Model | d | A | B | Da | Use with D |
| 25GBSP | 60 | 90 | 70 | 65 | 80 |
| 80 | 110 | 90 | 85 | 100 |
Swipe
| Order Code | d | D | M | S | Sa | A | B | d1 | C | E | F | G |
| 25SNG720000 | 60 | 80 | M8 | 54 | 65.1 | 24.6 | 18.9 | 9 | 13 | 18 | 13.5 | 10 |
| 80 | 100 | 65 | 76.1 | |||||||||
| 25SNG730000 | 60 | 80 | M10 | 55.5 | 68.4 | 27.9 | 23.5 | 11 | 15.5 | 20.5 | 15 | 12.5 |
| 80 | 100 | 66.5 | 79.4 |
Swipe
_Thumbnail.jpg "Oil Free Leader Bushs (Straight Type)")
