Fastening Coupling

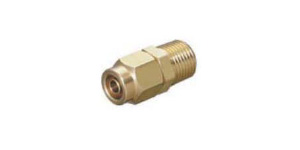

Fastening Coupling brass fitting for pipe and injection mold.
Model: 21S-NKC
more
- Model 21S-NKC
- Manufacturer Code S-NKC
View Online
Download
Swipe

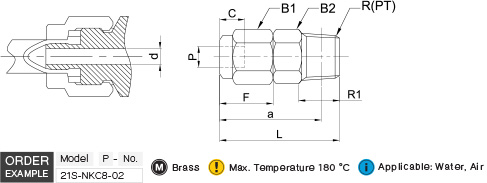

| Model | P | No. | R (PT) | Tube OD x ID |
C | d | L | a | F | B1 | R1 | B2 |
| 21S-NKC | 6 | 01 | 1/8PT | 6 x 4 | 6 | 3.0 | 25.5 | 21.5 | 11.5 | 12 | 8 | 12 |
| 02 | 1/4PT | 28.5 | 22.5 | 11 | 14 | |||||||
| 03 | 3/8PT | 29.5 | 23.2 | 12 | 17 | |||||||
| 8 | 01 | 1/8PT | 8 x 6 | 7 | 5.0 | 27.5 | 23.5 | 13.5 | 14 | 8 | 14 | |
| 02 | 1/4PT | 30.5 | 24.5 | 11 | 14 | |||||||
| 03 | 3/8PT | 31.5 | 25.2 | 12 | 17 | |||||||
| 10 | 02 | 1/4PT | 10 x 7.5 | 9 | 6.0 | 33.5 | 27.5 | 16.5 | 17 | 11 | 17 | |
| 03 | 3/8PT | 34.5 | 28.2 | 12 | 17 | |||||||
| 04 | 1/2PT | 37.5 | 29.3 | 15 | 21 | |||||||
| 12 | 02 | 1/4PT | 12 x 9 | 9 | 7.5 | 33.5 | 27.5 | 16.5 | 19 | 11 | 19 | |
| 03 | 3/8PT | 34.5 | 28.2 | 12 | 19 | |||||||
| 04 | 1/2PT | 37.5 | 29.3 | 15 | 21 |
