Quick Coupling Cascade

Quick Coupling Cascade for plastic injection mold.
Model: 21CQC

more
Brand
OIL FREE
OIL FREE
Swipe

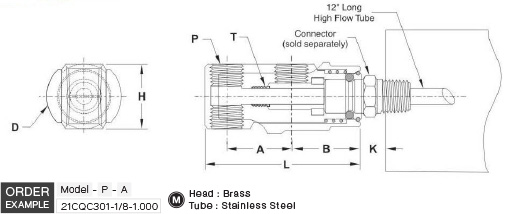

Quick Coupling Cascade drawing
Model P
(NPT)		 A
(Inch)		 Matching
Fitting		 T
(Inch)		 B
(Inch)		 H
(Inch)		 D
(Inch)		 L
(Inch)
21CQC301 1/8 0.687 A
301		 0.187 0.968 0.812 0.875 1.937
1.000 0.187 0.968 0.812 0.875 2.250
21CQC401 1/4 0.687 A
401		 0.250 1.156 1.000 1.125 2.187
1.000 0.250 1.156 1.000 1.125 2.500
3/8 1.250 0.437 1.375 1.250 1.375 3.113
