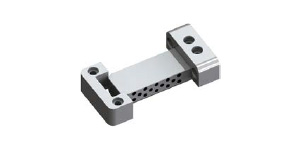

_Pic.jpg "Slide Block Set Oil Free")
Slide Block Set Oil Free
Slide Block Set Oil Free Z48 component for injection mold positioning.
Model: 21HAS-Z48
more
- Model 21HAS-Z48
- Manufacturer Code HAS-Z48/Z48
View Online
Download
Swipe

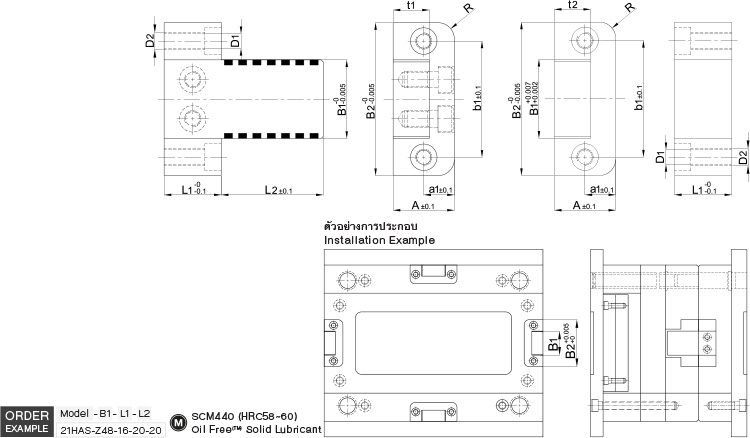

_Drawing.jpg "Slide Block Set Oil Free drawing")
| Model | B1 | L1 | L2 | A | B2 | D1 | D2 | a1 | b1 | t1 | t2 | R |
| 21HAS-Z48 | 16 | 20 | 20 | 22 | 45 | 6.8 | M8 | 11 | 30 | 11.5 | 12 | 8 |
| 40 | ||||||||||||
| 30 | 26 | 40 | 35 | 60 | 6.8 | M8 | 17.5 | 46 | 19.5 | 20 | 10 | |
| 63 | ||||||||||||
| 48 | 36 | 32 | 46 | 100 | 10.3 | M12 | 23 | 74 | 25.5 | 26 | 12.5 | |
| 50 | ||||||||||||
| 63 | ||||||||||||
| 80 | ||||||||||||
| 77 | 56 | 50 | 60 | 150 | 14 | M16 | 30 | 114 | 35.5 | 36 | 16 | |
| 71 | ||||||||||||
| 100 |
