Socket Head Cap Bolts

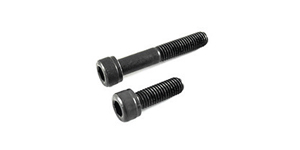

Socket Head Cap Bolt model 24CB made from steel with blacken surface treatment.
Standards: DIN 912 / ISO 4762 / ANSI 18.3.1M / JIS B 1176

more
  • Model 24CB
  • Manufacturer Code CB
Brand
SRT
SRT
  • Type

    Bolt

Swipe
Socket Head Cap Bolts drawing
M L MxP B Max
ℓ
2 4 6 8 10 12 16 20 25









M2.0x0.40 1.5 16
2.5 4 6 8 10 12 16 20 25









M2.5x0.45 2 17
3 4 6 8 10 12 16 20 25 30 35 40 45 50




M3.0x0.50 2.5 18
4 4 6 8 10 12 16 20 25 30 35 40 45 50 55 60 65 70 75 M4.0x0.70 3 20
80 90 100 110













5 4 6 8 10 12 16 20 25 30 35 40 45 50 55 60 65 70 75 M5.0x0.80 4 22
80 90 100 110 120 130 140 150









6 4 6 8 10 12 16 20 25 30 35 40 45 50 55 60 65 70 75 M6.0x1.00 5 24
80 90 100 110 120 130 140 150









8 10 12 16 20 25 30 35 40 45 50 55 60 65 70 75 80 90 100 M8.0x1.25 6 28
110 120 130 140 150 160 180 200 230 250 280 300





10 16 20 25 30 35 40 45 50 55 60 65 70 75 80 90 100 110 120 M10x1.50 8 32
130 140 150 160 170 180 190 200 230 250 280 300





12 16 20 25 30 35 40 45 50 55 60 65 70 75 80 90 100 110 120 M12x1.75 10 36
130 140 150 160 170 180 190 200 210 220 230 240 250 280 300


14 25 30 35 40 45 50 55 60 65 70 75 80 90 100 110 120 130 140 M14x2.00 12 40
150 160 170 180 190 200 230 250









16 25 30 35 40 45 50 55 60 65 70 75 80 90 100 110 120 130 140 M16x2.00 14 44
150 160 170 180 190 200 210 220 230 240 250 280 300 320 340 360 380 400
18 40 45 50 55 60 65 70 75 80 90 100 110 120 130 140 150 160 170 M18x2.50 14 48
180 190 200 230 250 280 300 320 340 360 380 400





20 40 45 50 55 60 65 70 75 80 90 100 110 120 130 140 150 160 170 M20x2.50 17 52
180 190 200 210 220 230 240 250 280 300 320 340 360 380 400


22 50 55 60 65 70 75 80 90 100 110 120 130 140 150 180 200 230 250 M22x2.50 17 56
280 300 320 340 360 380 400










24 50 55 60 65 70 75 80 90 100 110 120 130 140 150 160 170 180 190 M24x3.00 19 60
200 210 220 230 240 250 280 300 320 340 360 380 400




27 50 55 60 65 70 75 80 90 100 110 120 130 140 150 160 170 180 190 M27x3.00 19 66
200 210 220 230 240 250 280 300 320 340 360 380 400




30 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 230 250 M30x3.50 22 72
280 300 320 340 360 380 400










33 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 M33x3.50 22 84
280 300 320 340 360 380 400










36 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 M36x4.00 27 96
280 300 320 340 360 380 400
