Bell Crank Lifter Parts (Shaft Arm)

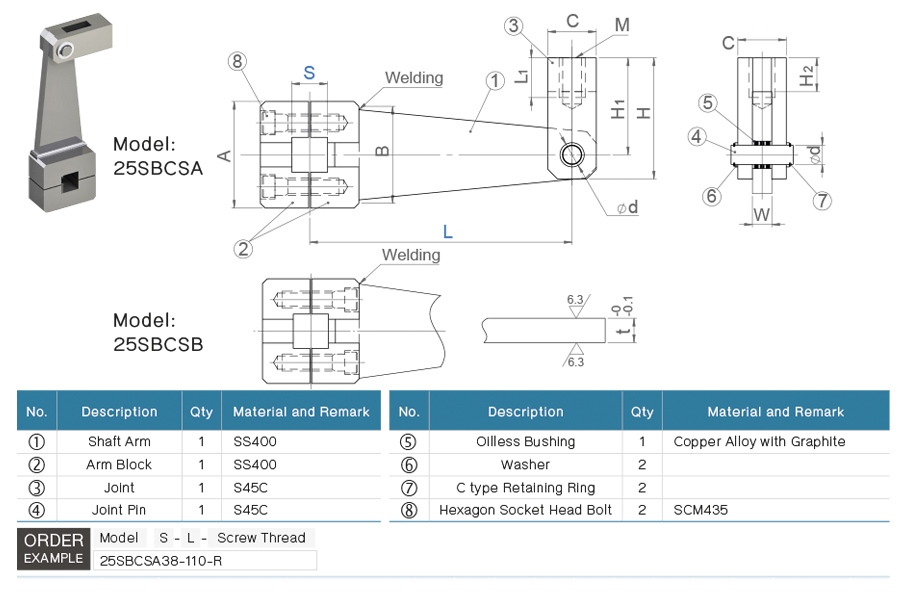

Bell Crank Lifter Parts (Shaft Arm) standard bell crank component for die transferring.
Model: 25SBCSA, 25SBCSB
more
- Model 25SBCSA/25SBCSB
- Manufacturer Code SBCSA/SBCSB/SBSASA/SBSASB
View Online
Download
Swipe
| Model | S | L 10mm increments |
Screw Thread (joint area) |
A | B | C | H | H1 | H2 | L1 | d | W | M | t |
| 25SBLSA 25SBLSB |
28 | 100 ~ 300 | R (Right Hand) L (Left Hand) |
75 | 60 | 40 | 95 | 75 | 25 | 30 | 16 | 16 | M20x2.5 | 15 |
| 38 | 100 ~ 400 | 90 | 80 | 50 | 110 | 85 | 35 | 40 | 20 | 20 | M24x3.0 | 20 | ||
| 50 | 100 ~ 600 | 110 | 100 | 50 | 110 | 85 | 35 | 40 | 20 | 20 | M27x3.0 | 20 |
