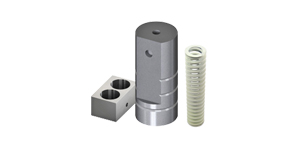

Embed Lifter Unit LGIL

Embed Lifter Unit for metal stamping die transfer system.

Select holes type:

  • 25LGIL (standard)
  • 25LGILN (no hole)

Spring Color Code: SSR (white)

more
  • Model 25LGIL/25LGILN
  • Manufacturer Code LGIL/LGILN/LGPL/LGPLN
Brand
OIL FREE
OIL FREE
  • Type

    Lifter Unit

Swipe

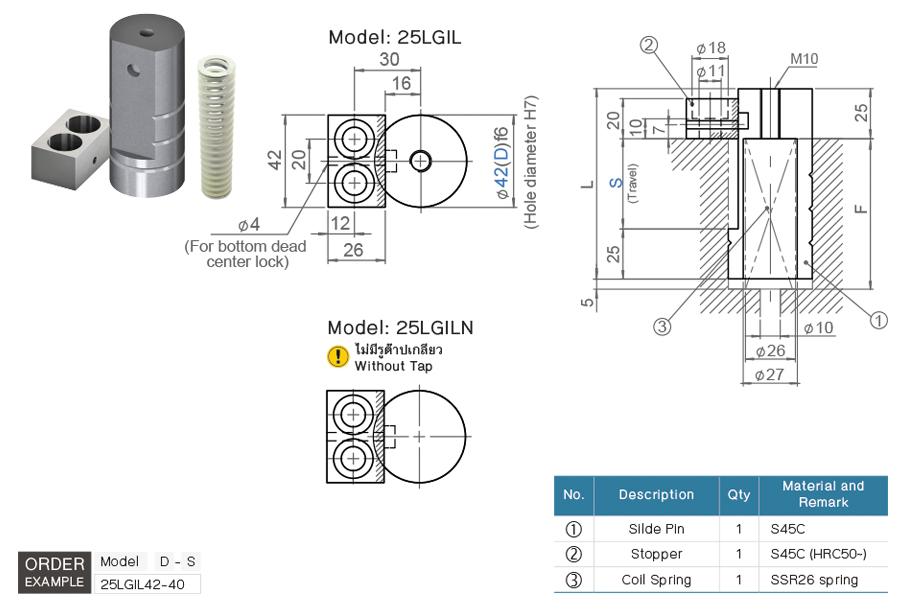

Embed Lifter Unit LGIL drawing
Model D Stroke
S
F L Spring
OdxL Initial Load (N) Final Load (N)
25LGIL
25LGILN
42 40 70 90 26x125 97 355
60 90 110 26x175 115 392
