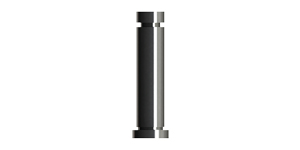

Guide Lifter

Guide Lifter standard component for metal stamping die transfer system.
Model: 25GLP Standard Type, choose only L / A
Model: 25GLH Increment Type, choose L / A increment by 0.1mm
Model: 25GLK Increment Type, choose L / A / E / W increment by 0.1mm

more
  • Model 25GLP/25GLH/25GLK
  • Manufacturer Code GLH/GLK/GLP/GLF
Brand
OIL FREE
OIL FREE
  • Type

    Lifter

Swipe

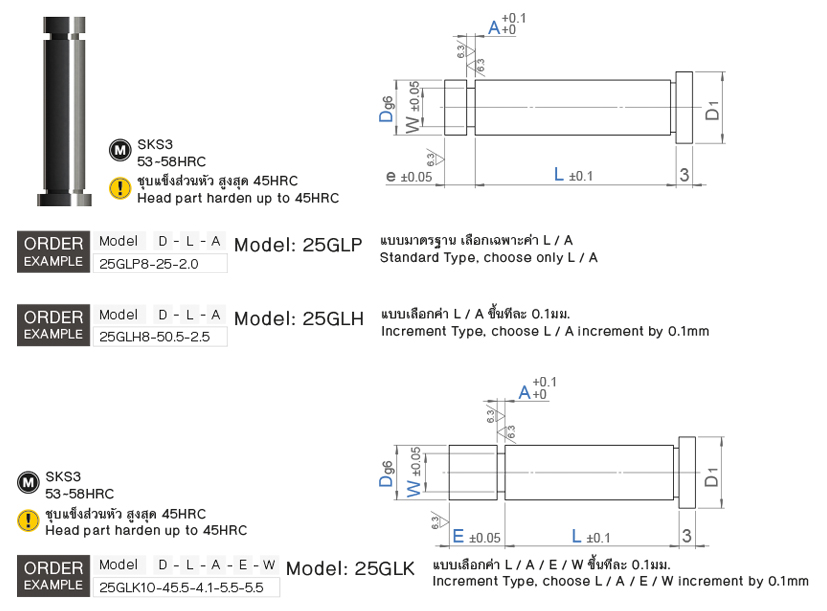

Guide Lifter drawing
Model D g6 L A e W D1
25GLP 4 -0.004
-0.012		 10 15 20 22 25 28 30 33 35 36 40 45 50


0.5 / 0.8 / 1.0 5 2 6
6 10 15 20 22 25 28 30 33 35 36 40 45 50


0.5 / 0.8 / 1.0 / 1.6 7 3.6 8
8 -0.005
-0.014		 10 15 20 22 25 28 30 33 35 36 40 45 50 55 60
1.0 / 1.6 / 2.0 5 10
10

20 22 25 28 30 33 35 36 40 45 50 55 60
1.6 / 2.0 / 2.5 6 13
13 -0.006
-0.017

20 22 25 28 30 33 35 36 40 45 50 55 60
2.0 / 2.5 / 3.6 7 16
16





30 33 35 36 40 45 50 55 60 70 2.0 / 2.5 / 4.0 12 8 19
20 -0.007
-0.020






33 35 36 40 45 50 55 60 70 3.6 / 5.0 10 23
Swipe
Model D g6 0.1mm increment e W D1
L A
25GLH 4 -0.004
-0.012		 10.0 – 55.0 0.5 – 2.0 5 2 6
6 10.0 – 75.0 0.5 – 3.0 7 3.6 8
8 -0.005
-0.014		 10.0 – 75.0 0.7 – 4.5 5 10
10 10.0 – 90.0 0.7 – 4.5 6 13
13 -0.006
-0.017		 10.0 – 90.0 1.0 – 6.0 7 16
16 10.0 – 100.0 1.0 – 6.0 12 8 19
20 -0.007
-0.020		 15.0 – 100.0 1.0 – 6.0 10 23
25 15.0 – 100.0 1.0 – 6.0 13 28
Swipe
Model D g6 0.1mm increment D1
L A E W
25GLK 4 -0.004
-0.012		 15.0 – 45.0 0.5 – 2.0 5.0 – 10.0 1.5 – 2.2 6
6 15.0 – 72.0 0.5 – 3.0 5.0 – 10.0 2.5 – 4.6 8
8 -0.005
-0.014		 15.0 – 72.0 0.7 – 4.5 5.0 – 10.0 3.5 – 6.0 10
10 15.0 – 82.0 0.7 – 4.5 5.0 – 15.0 5.0 – 8.0 13
13 -0.006
-0.017		 20.0 – 82.0 1.0 – 6.0 5.0 – 15.0 6.0 – 11.0 16
16 20.0 – 82.0 1.0 – 6.0 10.0 – 20.0 6.0 – 14.0 19
20 -0.007
-0.020		 20.0 – 82.0 1.0 – 6.0 10.0 – 20.0 10.0 – 18.0 23
25 20.0 – 82.0 1.0 – 6.0 10.0 – 20.0 13.0 – 22.0 28
Swipe
