Locating Pilot Pins PSTM

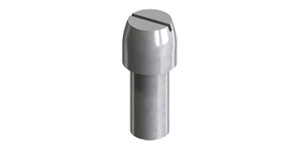

Locating Pilot Pins standard locating component for metal stamping die.

Model: 25PSTM

more
  • Model 25PSTM
  • Manufacturer Code PSTM
Brand
OIL FREE
OIL FREE
  • Type

    Locating Pin

Swipe
Locating Pilot Pins PSTM drawing
Model D L P
0.01 increments
B S M
25PSTM 5 12
15
6.00 ~ 8.00 2 7 3
6 7.00 ~ 9.00 8
8 15
18
9.00 ~ 13.00 3 9 4
10 11.00 ~ 15.00 5
