Locating Pilot Pins SKSTH

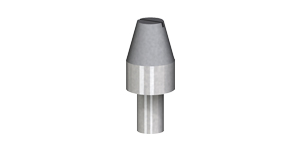

Locating Pilot Pins standard locating component for metal stamping die.
Model: 25SKSTH
more
- Model 25SKSTH
- Manufacturer Code SKSTH
View Online
Download
Swipe
| Model | D g6 | P 0.01 increments |
B 0.1 increments |
M | L | S | |
| 25SKSTH | 5 | -0.004 -0.012 |
8.00 ~ 8.99 | 1.00 ~ 12.00 | 3 | 12 | 8 |
| 9.00 ~ 10.00 | 10 | ||||||
| 6 | 10.00 ~ 10.99 | 1.00 ~ 15.00 | 3 | 12 | 10 | ||
| 11.00 ~ 12.00 | 12 | ||||||
| 8 | -0.005 -0.014 |
12.00 ~ 12.99 | 1.00 ~ 15.00 | 4 | 15 | 15 | |
| 13.00 ~ 16.00 | 17 | ||||||
| 10 | 14.00 ~ 14.99 | 1.00 ~ 20.00 | 5 | 15 | 17 | ||
| 15.00 ~ 20.00 | 20 | ||||||
| 13 | -0.006 -0.017 |
16.00 ~ 16.99 | 1.00 ~ 20.00 | 6 | 20 | 20 | |
| 17.00 ~ 20.00 | 25 | ||||||
| 16 | 18.00 ~ 20.00 | 1.00 ~ 20.00 | 8 | 24 | 25 | ||
