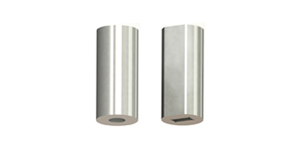

Punch Guide Bush Straight Type
Punch Guide Bush Straight Type, Material SKD11 60~63HRC
Shape A: MSG
Shape D: SGD
Shape R: SGR
Shape E: SGE
Shape G: SGG
more
View Online
Download
Swipe
| Order Code | L | Shape A | Shape D R E G | B | d | H | |||||||||
| Model | D | m5 | n5 | P 0.01 mm increment |
P,K Max 0.01 mm increment |
P,W Min 0.01 mm increment |
|||||||||
| Model Code |
8 | +0.012 +0.006 |
+0.016 +0.010 |
10 | 13 | 16 | 20 | 22 | 25 | 1.00 – 4.00 | 4.0 | 1.0 | 4 | 4.4 | 11 |
| 10 | +0.002 | +0.002 | 10 | 13 | 16 | 20 | 22 | 25 | 2.00 – 6.00 | 6.0 | 1.2 | 6.4 | 13 | ||
| 13 | +0.015 +0.007 |
+0.020 +0.012 |
10 | 13 | 16 | 20 | 22 | 25 | 3.00 – 8.00 | 8.0 | 1.5 | 6 | 8.4 | 16 | |
| 16 | 10 | 13 | 16 | 20 | 22 | 25 | 3.00 – 10.00 | 10.0 | 2.0 | 10.6 | 19 | ||||
