Straight Pilot Punch With Key Groove

Straight Pilot Punch With Key Groove for metal stamping die.

1. Choose punch material and coating

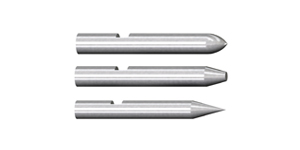

2. Choose tip shape (Radius Tip, Taper Tip, Point Tip)
3. Choose dimensions

more
Swipe
Straight Pilot Punch With Key Groove drawing
Order Code L P
0.01 mm
increment
A T
0.1 mm
increment
Y U
Model No.
Model
Code
10 42 52 62 72 82 92 8.00 – 10.00 (10)
(15)
20
25
30
T > 5.0 5 1.5
13 42 52 62 72 82 92 10.00 – 13.00 8
16 42 52 62 72 82 92 13.00 – 16.00
