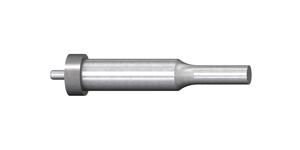

Punch with Dowel
Punch with Dowel for metal stamping die.
1. Choose punch material and coating
2. Choose tip shape & length
3. Choose dimensions
more
View Online
Download
Swipe
| Order Code | L 10mm increment |
Shape A | Shape D R E G | B | H | ||||||
| Model | Shape | Tip Length | Dowel Type |
D m5 | P 0.01 mm increment |
P,K Max 0.01 mm increment |
P,W Min 0.01 mm increment |
||||
| Model Code |
A D R E G |
S | -C | 10 | +0.012 +0.006 |
40 ~ 150 | 3.00 – 9.99 | 9.97 | 2.50 | 13 (L40 B=8) |
13 |
| 13 | +0.006 | 40 ~ 150 | 6.00 – 12.99 | 12.97 | 3.00 | 16 | |||||
| 16 | 40 ~ 150 | 10.00 – 15.99 | 15.97 | 4.00 | 19 (L40 B=8) |
19 | |||||
| 20 | +0.017 +0.008 |
40 ~ 150 | 13.00 – 19.99 | 19.97 | 5.00 | 23 | |||||
| 25 | 40 ~ 150 | 18.00 – 24.99 | 24.97 | 6.00 | 28 | ||||||
| 32 | +0.020 +0.009 |
40 ~ 150 | 20.00 – 31.99 | 31.97 | 7.00 | 19 (L40 B=6) (L50 B=13) |
35 | ||||
| 38 | 40 ~ 150 | 28.00 – 37.99 | 37.97 | 8.00 | 41 | ||||||
| 45 | 40 ~ 150 | 35.00 – 44.99 | 44.97 | 9.00 | 48 | ||||||
| L | 10 | +0.012 +0.006 |
50 ~ 150 | 3.00 – 9.99 | 9.97 | 2.50 | 19 | 13 | |||
| 13 | +0.006 | 50 ~ 150 | 6.00 – 12.99 | 12.97 | 3.00 | 16 | |||||
| 16 | 60 ~ 150 | 10.00 – 15.99 | 15.97 | 4.00 | 25 | 19 | |||||
| 20 | +0.017 +0.008 |
60 ~ 150 | 13.00 – 19.99 | 19.97 | 5.00 | 23 | |||||
| 25 | 60 ~ 150 | 18.00 – 24.99 | 24.97 | 6.00 | 28 | ||||||
| 32 | +0.020 +0.009 |
60 ~ 150 | 20.00 – 31.99 | 31.97 | 7.00 | 35 | |||||
| 38 | 60 ~ 150 | 28.00 – 37.99 | 37.97 | 8.00 | 41 | ||||||
| 45 | 60 ~ 150 | 35.00 – 44.99 | 44.97 | 9.00 | 48 | ||||||
| X | 10 | +0.012 +0.006 |
70 ~ 150 | 6.00 – 9.99 | 9.97 | 5.00 | 30 | 13 | |||
| 13 | +0.006 | 70 ~ 150 | 6.00 – 12.99 | 12.97 | 5.00 | 16 | |||||
| 16 | 80 ~ 150 | 10.00 – 15.99 | - | 40 | 19 | ||||||
| 20 | +0.017 +0.008 |
80 ~ 150 | 13.00 – 19.99 | 23 | |||||||
| 25 | 80 ~ 150 | 18.00 – 24.99 | 28 | ||||||||
| 32 | +0.020 +0.009 |
80 ~ 150 | 20.00 – 31.99 | 35 | |||||||
| 38 | 80 ~ 150 | 28.00 – 37.99 | 41 | ||||||||
| 45 | 80 ~ 150 | 35.00 – 44.99 | 48 | ||||||||
