Tapered Head Punch

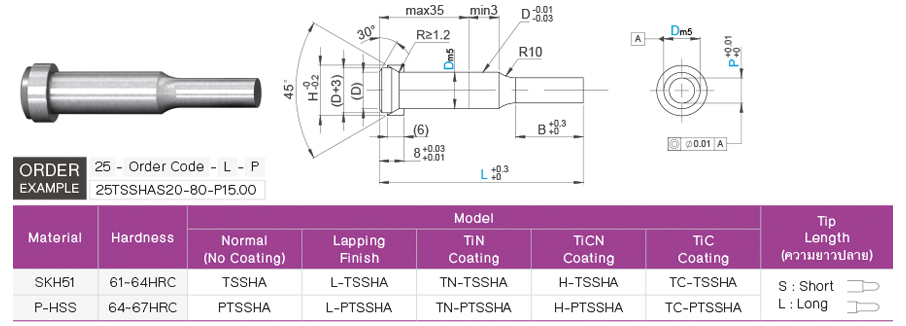

Tapered Head Punch for metal stamping die.
1. Choose punch material and coating
2. Choose dimensions
more
View Online
Download
Swipe
| Order Code | L 10mm increment |
P 0.01 mm increment |
B | H | |||
| Model | Tip Length | D m5 | |||||
| Model Code |
S | 10 | +0.012 +0.006 |
60 ~ 100 | 3.00 – 9.99 | 13 | 15 |
| 13 | +0.015 +0.007 |
60 ~ 100 | 6.00 – 12.99 | 18 | |||
| 16 | 60 ~ 100 | 10.00 – 15.99 | 19 | 21 | |||
| 20 | +0.017 +0.008 |
60 ~ 100 | 13.00 – 19.99 | 25 | |||
| 25 | 60 ~ 100 | 18.00 – 24.99 | 30 | ||||
| L | 10 | +0.012 +0.006 |
60 ~ 100 | 3.00 – 9.99 | 19 | 15 | |
| 13 | +0.015 +0.007 |
60 ~ 100 | 6.00 – 12.99 | 18 | |||
| 16 | 60 ~ 100 | 10.00 – 15.99 | 25 | 21 | |||
| 20 | +0.017 +0.008 |
60 ~ 100 | 13.00 – 19.99 | 25 | |||
| 25 | 60 ~ 100 | 18.00 – 24.99 | 30 | ||||
