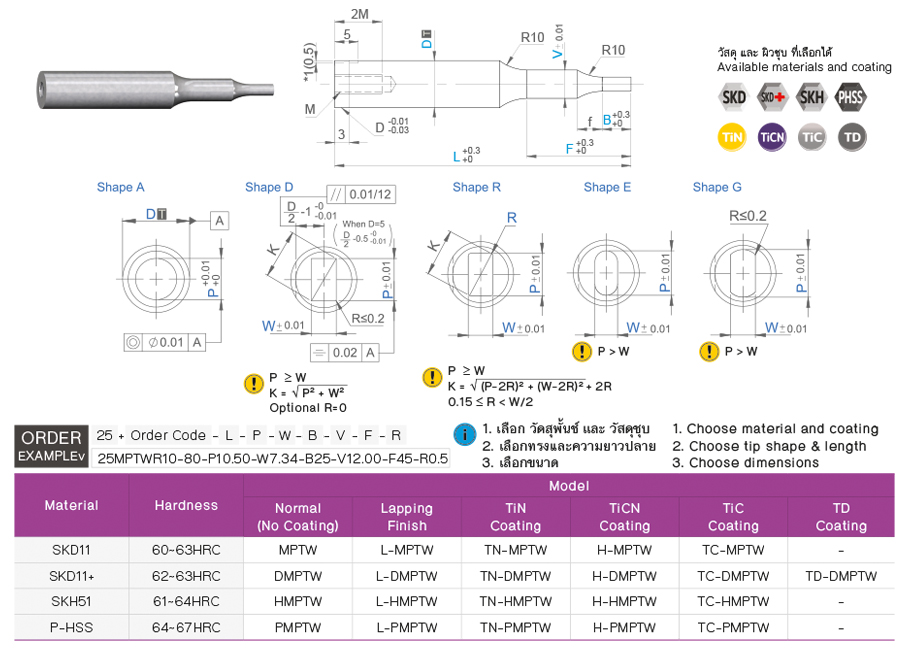

Double Step Tapped Punch
Double Step Tapped Punch for metal stamping die.
1. Choose punch material and coating
2. Choose tip shape & length
3. Choose dimensions
more
View Online
Download
Swipe
| Order Code | L 10mm increment |
Shape A | Shape D R E G | V 0.01 mm increment |
F 0.1 mm increment |
M | ||||||
| Model | Shape | D m5 | P 0.01 mm increment |
B 0.1 mm increment |
K Max 0.01 mm increment |
P,W 0.01 mm increment |
B 0.01 mm increment |
|||||
| Model Code |
A D R E G |
10 | +0.012 +0.006 |
40 ~ 100 | 1.50 – 1.99 | 2.0 – 20.0 | 9.96 | 1.25 – 1.49 | 2.0 – 8.0 | Shape A: D > V > P+0.01 Shape D R E G: D > V > K+0.03 |
B+f+2 < F ≤ Fmax where, f = √X*(20-X) X = (V-P)/2 Shape A: F ≤ L–25 Shape D R E G: F ≤ L–30 |
5 |
| 2.00 – 3.99 | 2.0 – 35.0 | 1.50 – 1.99 | 2.0 – 13.0 | |||||||||
| 4.00 - 5.99 | 2.0 – 45.0 | 2.00 – 3.49 | 2.0 – 19.0 | |||||||||
| 6.00 – 9.98 | 2.0 – 60.0 | 3.50 – 4.99 | 2.0 – 25.0 | |||||||||
| 6.00 – 9.98 | 2.0 – 60.0 | 5.00 – 9.96 | 2.0 – 30.0 | |||||||||
| 13 | +0.015 +0.007 |
40 ~ 100 | 3.00 – 3.99 | 2.0 – 35.0 | 12.96 | 1.50 – 1.99 | 2.0 – 13.0 | 6 | ||||
| 4.00 - 5.99 | 2.0 – 45.0 | 2.00 – 3.49 | 2.0 – 19.0 | |||||||||
| 6.00 – 12.98 | 2.0 – 60.0 | 3.50 – 4.99 | 2.0 – 25.0 | |||||||||
| 6.00 – 12.98 | 2.0 – 60.0 | 5.00 – 12.96 | 2.0 – 30.0 | |||||||||
| 16 | 40 ~ 100 | 5.00 - 5.99 | 2.0 – 45.0 | 15.96 | 2.00 – 3.49 | 2.0 – 19.0 | ||||||
| 6.00 – 15.98 | 2.0 – 60.0 | 3.50 – 4.99 | 2.0 – 25.0 | |||||||||
| 6.00 – 15.98 | 2.0 – 60.0 | 5.00 – 15.96 | 2.0 – 30.0 | |||||||||
| 20 | +0.017 +0.008 |
40 ~ 100 | 6.50 – 19.98 | 2.0 – 60.0 | 19.96 | 2.50 – 3.49 | 2.0 – 19.0 | |||||
| 6.50 – 19.98 | 2.0 – 60.0 | 3.50 – 4.99 | 2.0 – 25.0 | |||||||||
| 6.50 – 19.98 | 2.0 – 60.0 | 5.00 – 19.96 | 2.0 – 30.0 | |||||||||
| 25 | 40 ~ 100 | 9.00 – 24.98 | 2.0 – 60.0 | 24.96 | 3.00 – 3.49 | 2.0 – 19.0 | ||||||
| 9.00 – 24.98 | 2.0 – 60.0 | 3.50 – 4.99 | 2.0 – 25.0 | |||||||||
| 9.00 – 24.98 | 2.0 – 60.0 | 5.00 – 24.96 | 2.0 – 30.0 | |||||||||
