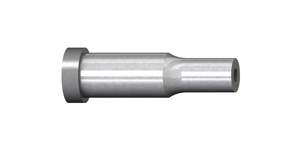

Blanking Punch
Blanking Punch for metal stamping die.
1. Choose punch material and coating
2. Choose dimensions
more
View Online
Download
Swipe

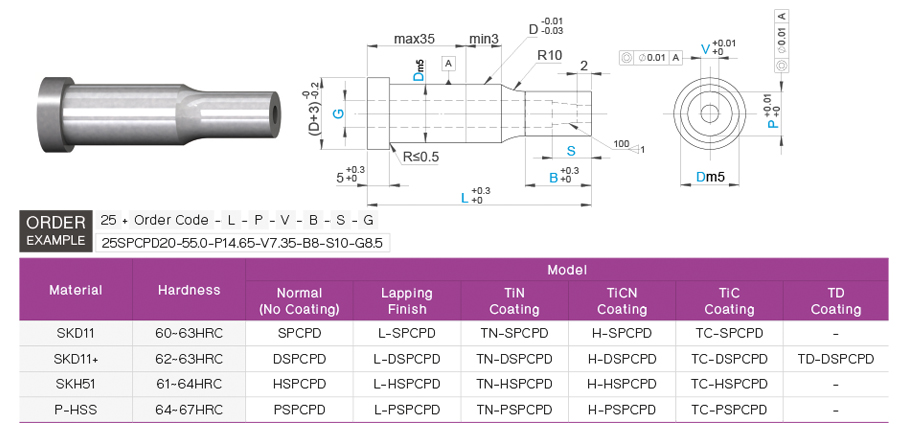

| Order Code | L 0.1 mm increment |
P 0.01 mm increment |
V 0.01 mm increment |
B 0.1 mm increment |
S 0.1 mm increment |
G | |||
| Model | D m5 | ||||||||
| Model Code |
10 | +0.012 +0.006 |
35.0 – 60.0 | 4.80 – 9.99 | 1.50 – (G-0.5) | 4.0 ≤ B ≤ 19.0 and B ≤ L-27 |
3 – 10 (if V ≤ 1.99, S = 3 – 4) |
G ≤ Px0.6 and (P-G)/2 ≥ 1.20 |
0.2 mm increment |
| 13 | +0.015 +0.007 |
5.80 – 12.99 | 0.5 mm increment |
||||||
| 16 | 9.80 – 15.99 | 2.50 – (G-0.5) | 4.0 ≤ B ≤ 25.0 and B ≤ L-27 |
||||||
| 20 | +0.017 +0.008 |
12.80 – 19.99 | 3.50 – (G-0.5) | 3 – 12 | |||||
| 25 | 40.0 – 60.0 | 17.80 – 24.99 | 4.00 – (G-0.5) | 4.0 ≤ B ≤ 25.0 and B ≤ L-32 |
|||||
| 32 | +0.020 +0.009 |
19.80 – 31.99 | 7.50 – (G-0.5) | 3 – 15 | |||||
